Freewing 17g Digital Metal Gear Reverse Servo with 200mm (7.8") Lead
€719
(VAT inc.)€1419
SAVE
€7.00
CLEARANCE MERCHANDISE
- Clearance items are NEW merchandise in factory sealed boxes.
- Because of their deeply discounted prices, all Motion RC clearance items are sold “AS IS” and cannot be returned or exchanged under any circumstance.
- Clearance merchandise DOES NOT have a warranty. The buyer is responsible for any problems or repairs after purchase.
Freewing 17g Digital Metal Gear Reverse Servo with 200mm (7.8") Lead - MD31172R-200
This servo is used on various Freewing jets. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque digital metal gear reverse servo perfect for mid-sized to large EDF jets
Includes:
- Freewing 17g Digital Metal Gear Reverse Servo with 200mm (7.8") Lead
- 4 mounting screws
- 2 servo horns
Product Specifications:
| Servo Class | 17g |
| Servo Type | Digital |
| Gear Material | Metal |
| Direction | Reverse |
| Operating Voltage Range | 4.8V to 6V |
| Speed (4.8V) | 0.14 sec @ 60 deg |
| Speed (6V) | 0.13 sec @ 60 deg |
| Torque (4.8V) | 2.5 kg/cm (34.71 oz/in) |
| Torque (6V) | 3.0 kg/cm (41.66 oz/in) |
| Current Draw at Idle | 20mA |
| Current Draw Operating (No Load) | 120mA |

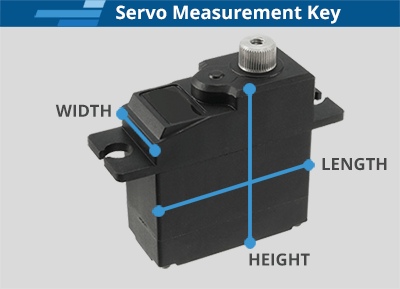

| Dimensions (L x W x H) | 28.5 x 13.5 x 30mm |
| Weight | 20g (.70oz) |
| Lead Length | 200mm |
