Freewing 17g Digital Hybrid Metal Gear Reverse Servo with 300mm (12") Lead
€1379
(VAT inc.)Freewing 17g Digital Hybrid Metal Gear Reverse Servo with 300mm (12") Lead - MD31173R-300
This servo utilizes both metal and plastic gears and is for 1400mm - 1600mm Freewing warbirds.
Product Specifications:
|
Servo Class |
17g |
|
Servo Type |
Digital |
|
Gear Material |
Metal |
|
Direction |
Reverse |
|
Operating Voltage Range |
4.8V to 6V |
|
Speed (4.8V) |
0.12 sec @ 60 deg |
|
Speed (6V) |
0.10 sec @ 60 deg |
|
Torque (4.8V) |
4.5 kg/cm (62.5 oz/in) |
|
Torque (6V) |
5.5 kg/cm (76.4 oz/in) |
|
Current Draw at Idle |
55mA |
|
Current Draw Operating (No Load) |
130mA |
|

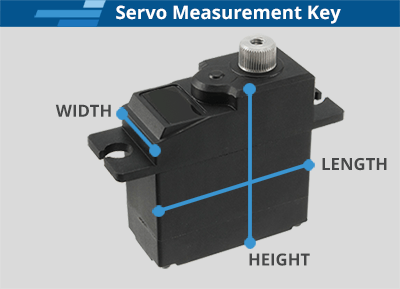

Dimensions (L x W x H) |
28.3 x 13.3 x 31.2mm |
|
Weight |
21.25g (.75oz) |
|
Lead Length |
300mm |
