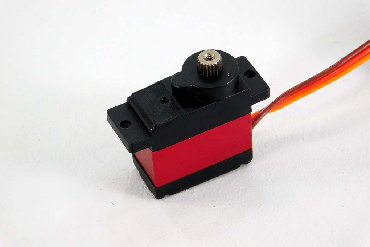

(VAT inc.)Freewing 16g Digital Metal Gear Reverse Servo with 100mm (4") Lead - MD33162R-100
This servo is used on various Freewing EDF jets. It can be used with other aircraft with compatible specifications (see below).
Features:
- Lightweight, efficient high torque digital metal gear servo perfect for larger-sized EDF jets
Includes:
- Freewing 16g Digital Metal Gear Reverse Servo with 100mm (4") Lead
- 4 mounting screws
- 3 servo horns
Product Specifications:
|
Servo Class |
16g |
|
Servo Type |
Digital |
|
Gear Material |
Metal |
|
Direction |
Reverse |
|
Operating Voltage Range |
4.8V to 6V |
|
Speed (4.8V) |
0.12 sec @ 60 deg |
|
Speed (6V) |
0.10 sec @ 60 deg |
|
Torque (4.8V) |
1.6 kg/cm (22.21 oz/in) |
|
Torque (6V) |
1.9 kg/cm (26.38 oz/in) |
|
Current Draw at Idle |
13mA |
|
Current Draw Operating (No Load) |
100mA |
|
Dimensions (L x W x H) |
23 x 12.2 x 26mm |
|
Weight |
13g (.45oz) |
|
Lead Length |
100mm |
