4XS 1/14 Scale Brushless 4WD Buggy - RTR from Carisma - CIS92768
Version Info: This buggy arrives fully assembled, decorated, and ready to run; but requires a 2S mini LiPo battery pack, LiPo charger, and 4 AA alkaline transmitter batteries for operation. Maximum battery size is 40mm x 100mm x 20mm, we recommend EPR13002X6.
Carisma revives mini off-road racing on carpet, turf, or dirt with the 1/14 Mini 4XS, a compact 4WD racing buggy designed around Carisma’s mini off-road DNA. It features a 4500KV sensorless brushless motor, 35A brushless ESC, full-time 4WD shaft-driven drivetrain, metal gear transmission, and adjustable slipper clutch for a durable, high-performance mini buggy experience. The Mini 4XS is equipped with aluminum oil-filled shocks, G10 chassis plate and shock towers, a screen-printed aerodynamic buggy body, oversized clear rear wing, fluorescent yellow dish wheels, and soft racing dirt-spec pin tires. It’s also compatible with many Carisma GT14B parts for complete tuning and upgrade opportunities.
Indoors or outside, experience the driving thrills and handling dynamics of a much larger vehicle on a compact track with Carisma’s 1/14 scale 4XS.
Visit the Official Carisma 4XS 1/14 Scale Brushless 4WD Buggy Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
|

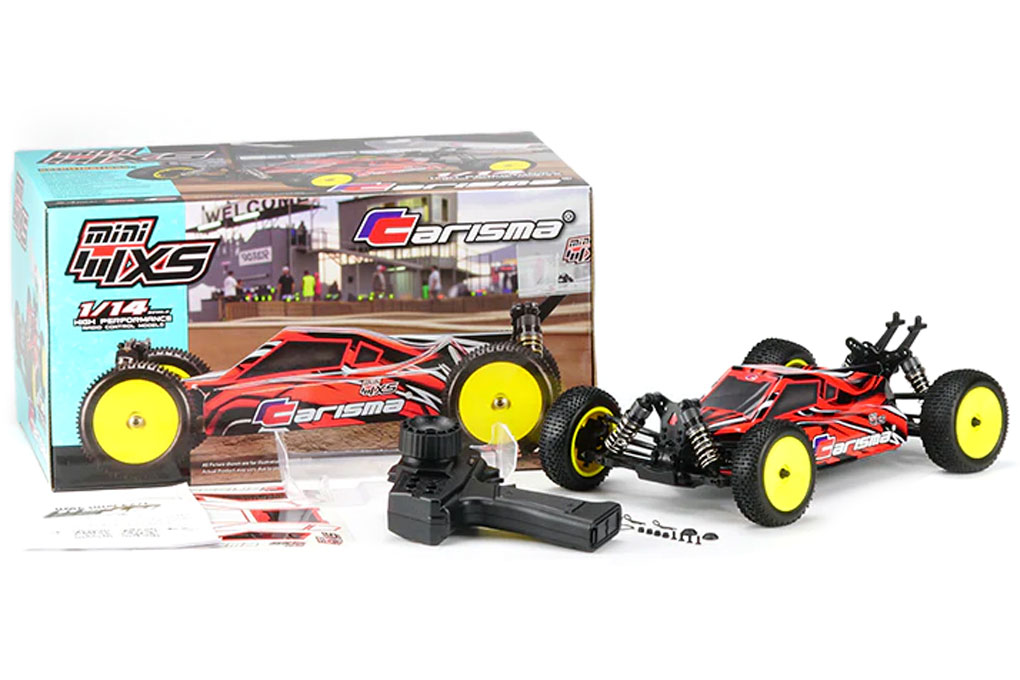

Fully Assembled and Ready to Run The Mini 4XS arrives ready for your choice of battery and charger, with a factory assembled chassis and decorated polycarbonate body. |
|

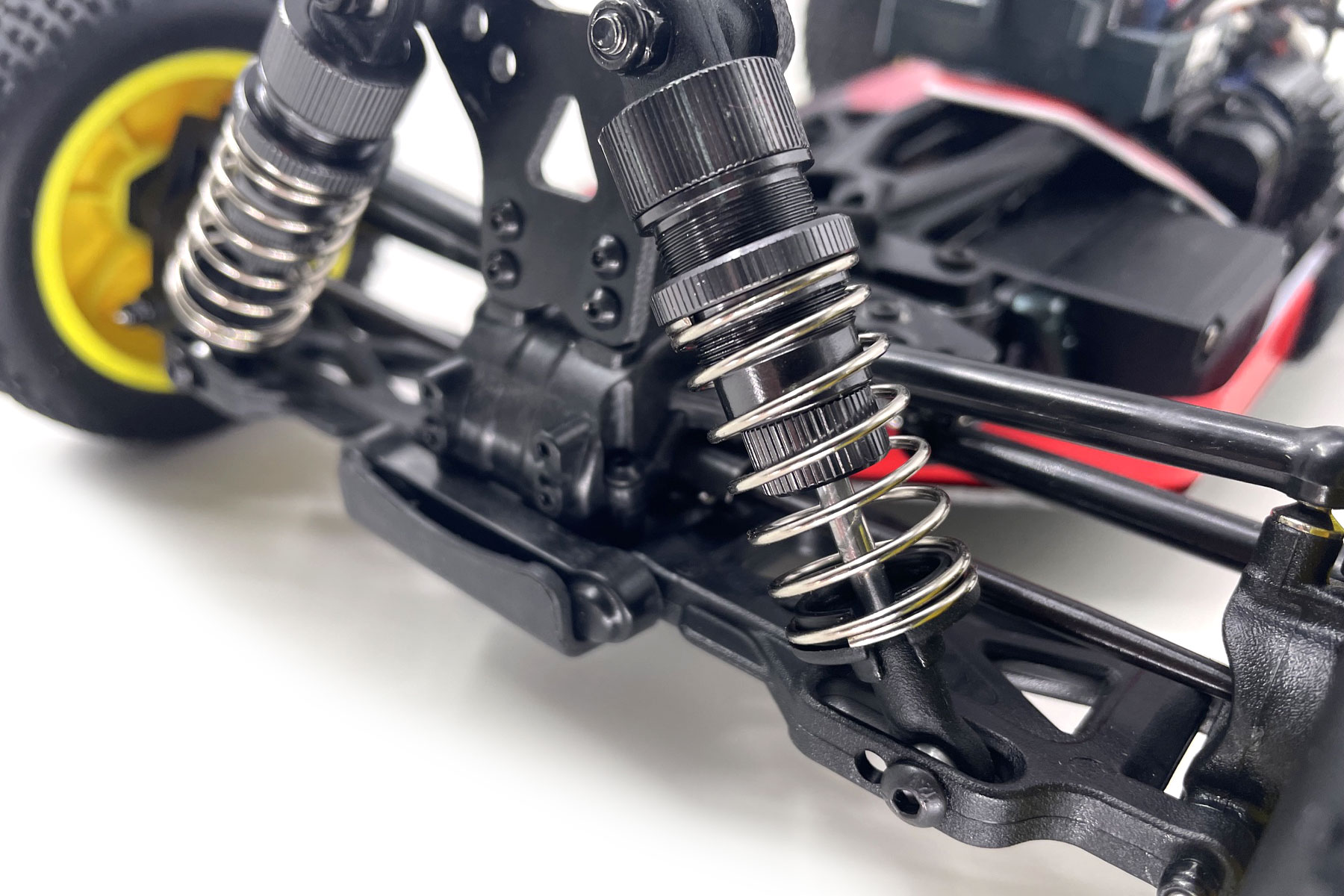

Precision Dampening Aluminum oil-filled shocks with threaded spring adjusters deliver infinite adjustability to dial-in the perfect setup for your individual driving conditions. |
|

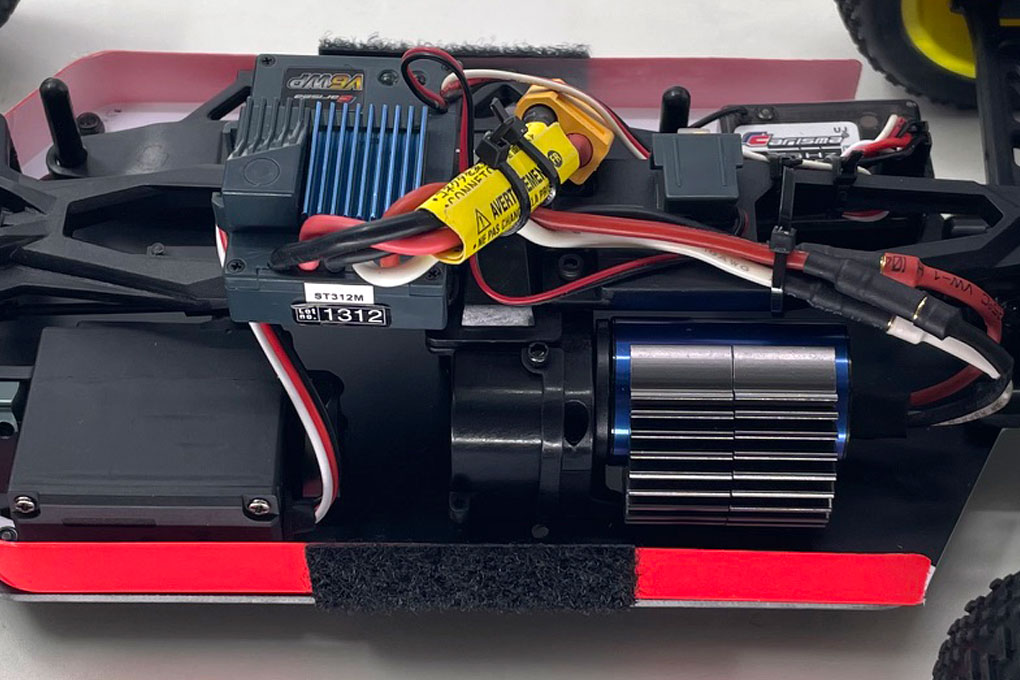

Exceptional Electronics An important component to the “larger model” feel delivered by the Mini 4XS are the ESC and brushless motor, providing a smooth, controllable throttle feel but with outstanding torque and top speed. |
|

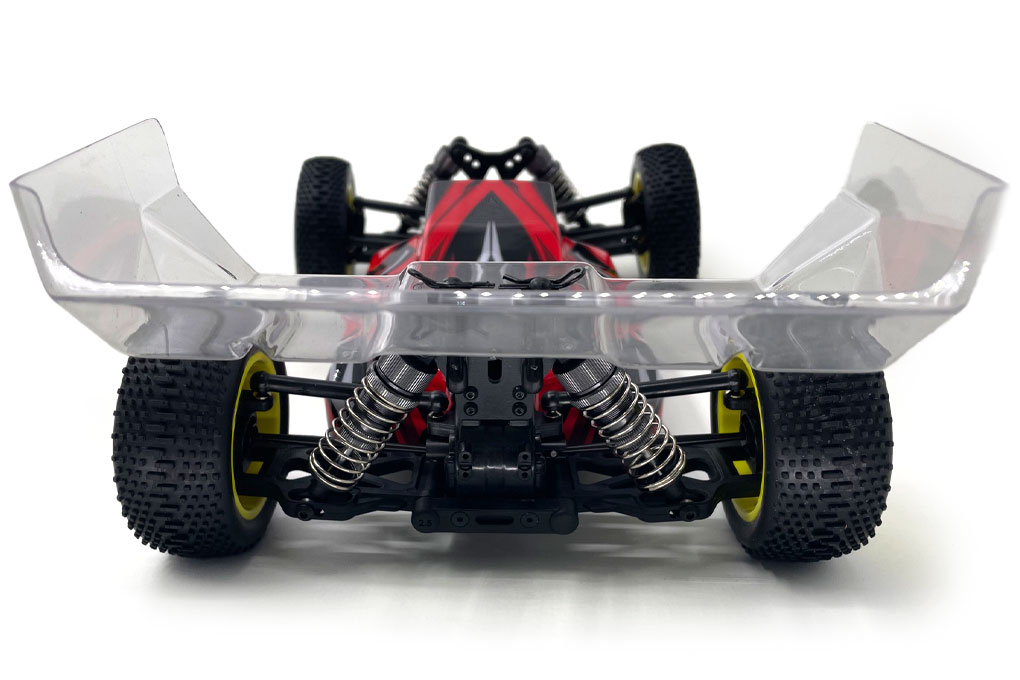

High Downforce The oversized polycarbonate rear wing delivers sufficient grip for any conditions. Fine-tune by trimming the top rear wing flap with scissors or a hobby knife and straight edge. |
Features:
- High-performance 4500Kv sensorless brushless motor
- 35A brushless ESC, 2S LiPo compatible
- Full-time 4WD shaft-driven drivetrain
- Full metal gear transmission
- Adjustable slipper clutch
- Race-inspired independent suspension geometry
- Lightweight G10 chassis plate
- G10 front and rear shock towers
- Aluminum oil-filled coil-over shock absorbers
- Long-travel suspension design
- Standard-size servo compatibility
- Optimized weight distribution
- Aerodynamic low-profile buggy body shell
- Oversized rear wing for improved jump stability
- Screen-printed race graphics
- Fluorescent yellow dish wheels
- Soft racing dirt-spec pin tires
- Compatible with many GT14B option parts
- 2.4GHz radio system included
- Brushless RTR-style electronics package
Includes:
- Carisma 4XS 1/14 Scale Brushless 4WD Buggy - RTR
- 2.4GHz radio system
- Standard-size steering servo
- 4500Kv brushless motor
- 35A brushless ESC
- Fluorescent yellow dish wheels with soft racing pin tires
Requires:
- 2S mini battery pack with XT60 connector - we recommend the Admiral 1300mAh 2S 7.4V 30C LiPo Battery with XT60 Connector
- Minimum 2 cell (2S) LiPo battery charger - select a minimum 2 cell (2S) charger from our Battery Charger Collection
- 4x AA batteries for transmitter - we recommend the Admiral 2600mAh 1.2V NiMH AA Rechargeable Batteries (4 Pack)
Product Specifications:
|
Model Scale |
1/14 |
|
Length |
330mm / 12.9in |
|
Width |
200mm / 7.8in |
|
Height |
90mm / 3.6in |
|
Weight (No Battery) |
900g / 32.1oz |
|
Wheelbase |
229mm / 9.0in |
|
Ground Clearance |
20mm / 0.7in |
|
Body |
Polycarbonate, factory painted |
|
Chassis |
G10 fiberglass chassis plate |
|
Drivetrain |
4WD |
|
Wheel Size (Diameter x Width) |
F: 52 x 24mm, R: 52 x 28mm |
|
Wheel Hex Size |
12mm |
|
Tire Tread |
All-terrain |
|
Bushing Material |
N/A |
|
Suspension |
Independent |
|
Shock Type |
Oil-filled, coil-over |
|
Transmission |
4WD Shaft-driven |
|
Gear Pitch |
0.6M |
|
Internal Gear Ratio |
2.46:1 |
|
Final Drive Ratio |
14.35:1 |
|
Pinion |
12T |
|
Spur Gear |
70T |
|
Differential |
Metal gear |
|
Ball Bearings |
Yes |
|
Brakes |
Electronic |
|
Electronic Speed Control |
35A brushless (included) |
|
Motor |
4500Kv brushless |
|
Battery |
7.4V LiPo (not included) |
|
Max Battery Dimensions (L x W x H) |
100 x 40 x 20mm |
|
Servos |
1 |
|
Radio |
2-channel (included) |
|
Lights |
No |
|
Sound |
No |
|
Water Resistant |
No |
|
Skill Level |
Beginner |
|
Assembly Time |
Less than 15 minutes |
|
Recommended Environment |
Indoors/Outdoors |
