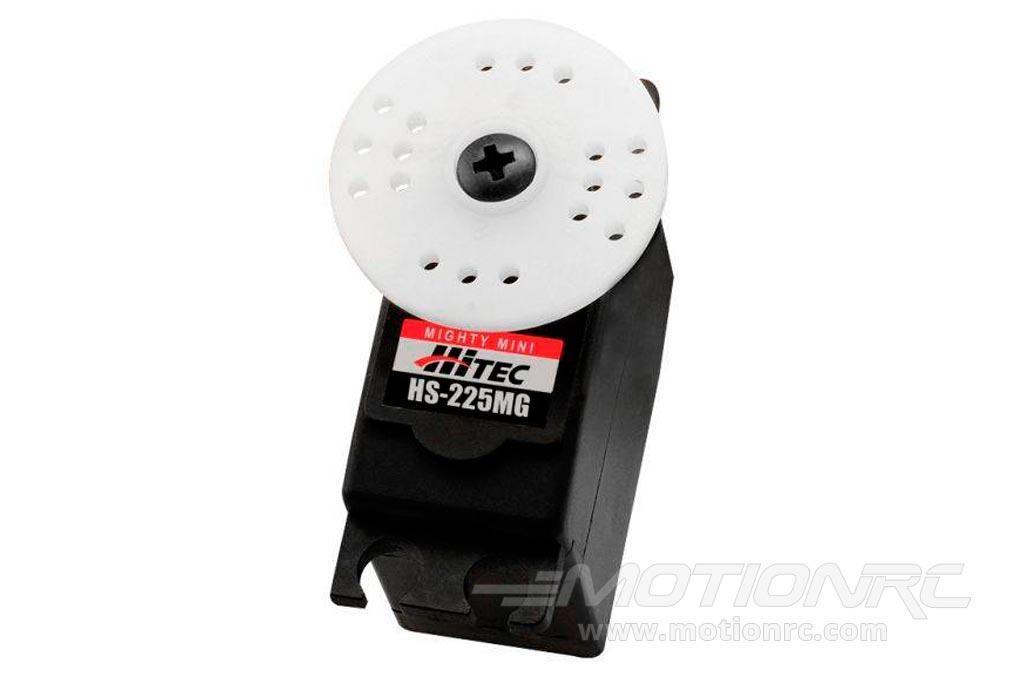

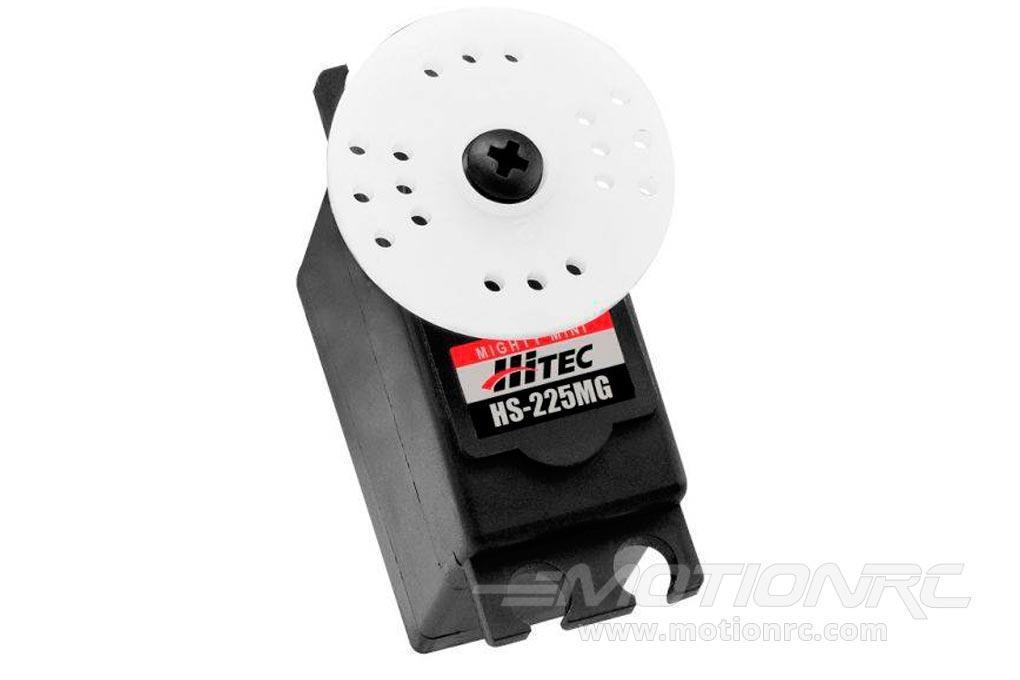

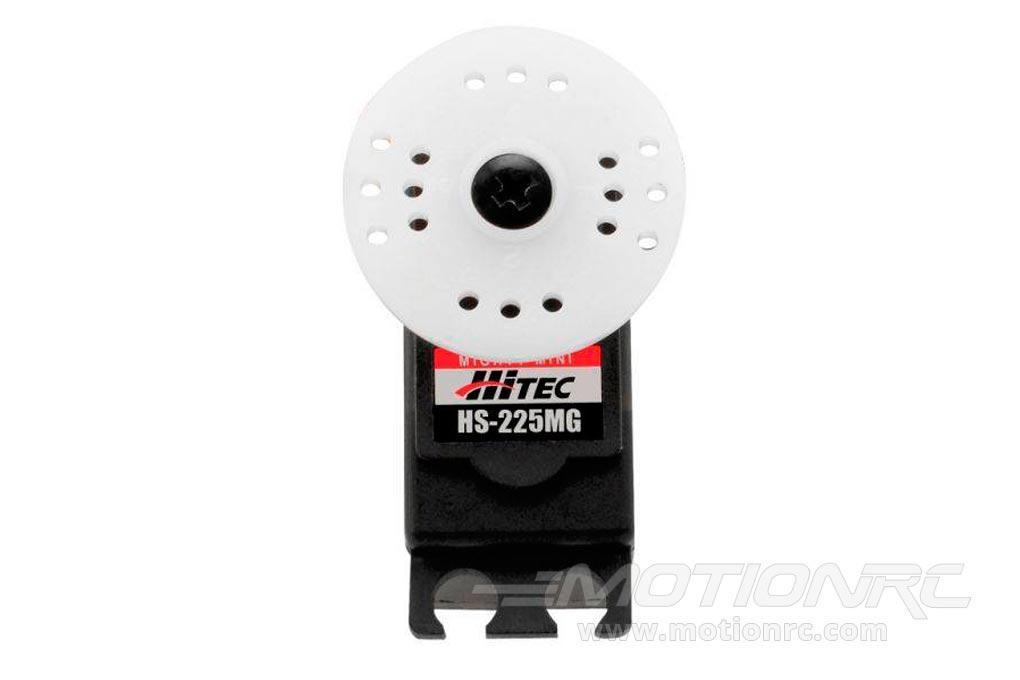

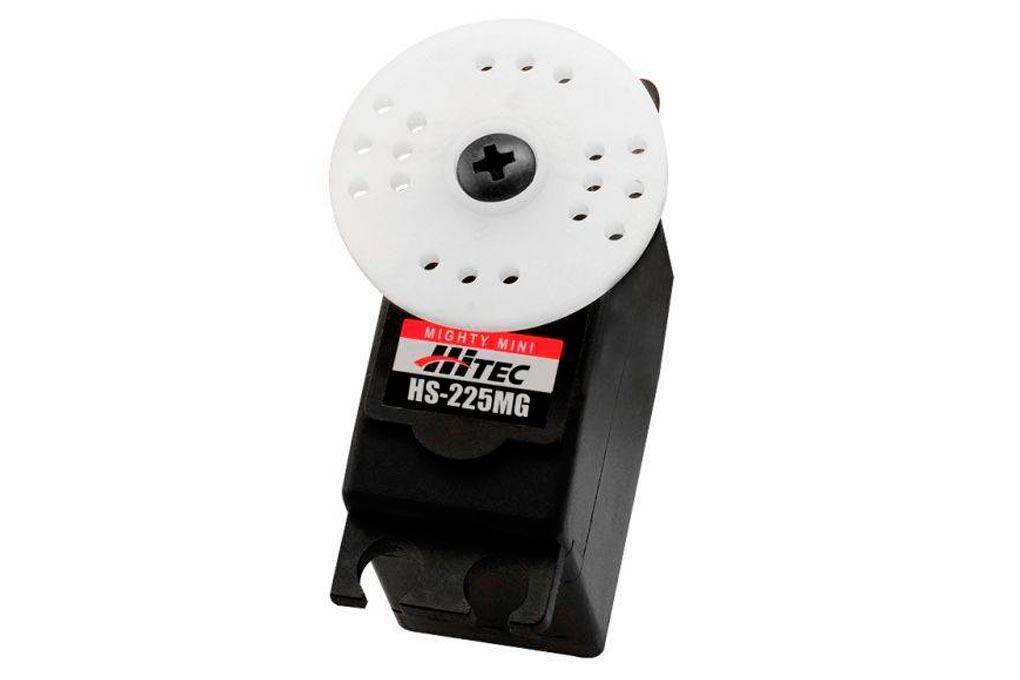

HS-225MG Ball Bearing Metal Gear Mighty Mini Servo from Hitec - HRC32225S
The analog HS-225 series represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servos such as a sailplane and other weight-sensitive applications, the HS-225MG high performance mini servo features a top ball bearing, metal gears and is built with state-of-the-art SMT technology.
Features:
- Small, lightweight, high speed, and high torque servo
- Top ball bearing
- SMT technology
- Indirect drive
- Hybrid/ Circuit
Includes:
- One Hitec HS-225MG ball bearing metal gear mighty mini servo with universal connector
- 4x screws, grommets, and eyelets
- 3x servo arms
- 1x wheel
Product Specifications:
Servo Class |
Mini |
Servo Type |
Analog |
Gear Material |
Metal |
Direction |
Standard / Normal |
Operating Voltage Range |
4.8V - 6V |
Speed (4.8V) |
0.14 sec @ 60 deg |
Speed (6V) |
0.11 sec @ 60 deg |
Torque (4.8V) |
3.9 kg/cm (54 oz/in) |
Torque (6V) |
4.8 kg/cm (67 oz/in) |
Current Draw at Idle |
8 mA |
Current Draw Operating (No Load) |
300 mA |

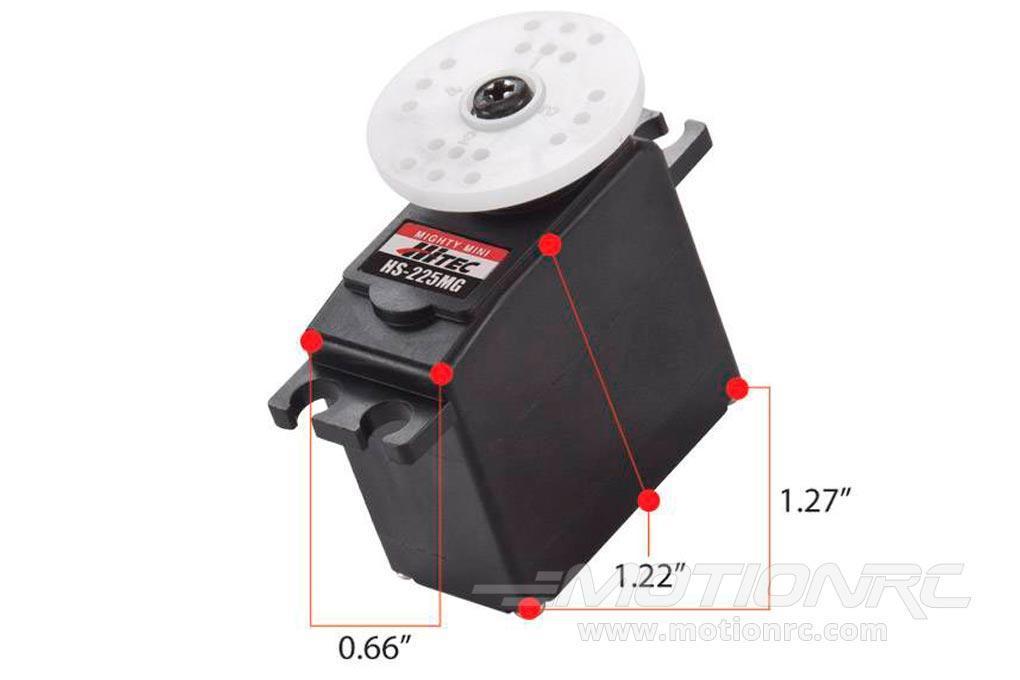

Dimensions (L x W x H) |
32.26 x 16.76 x 31mm |
Weight |
26.93g (0.95oz) |
Lead Length |
320mm |
