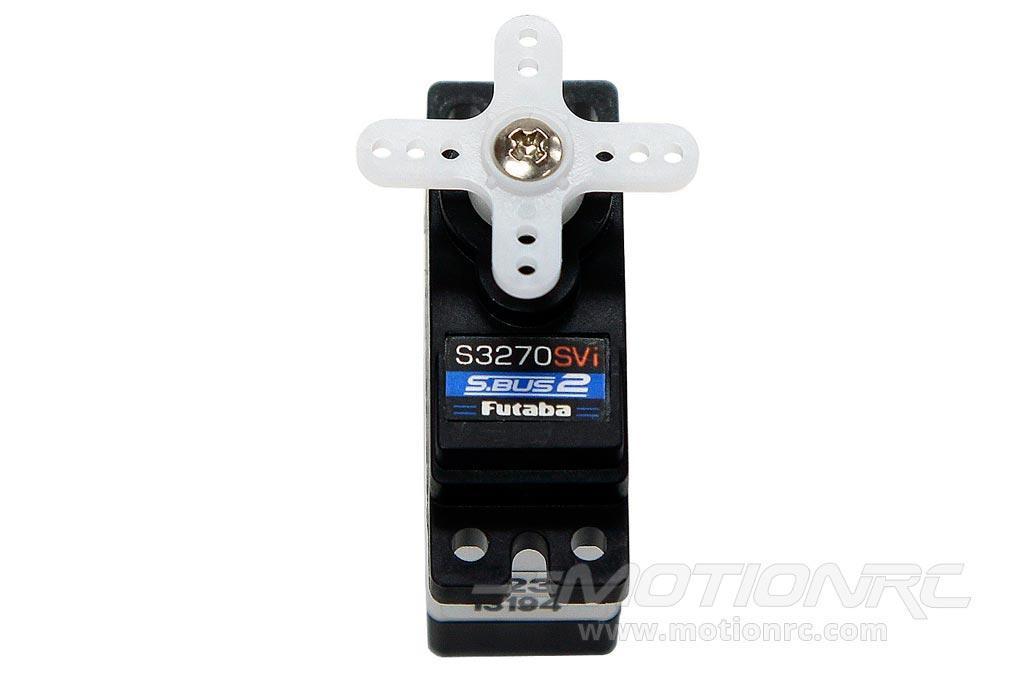

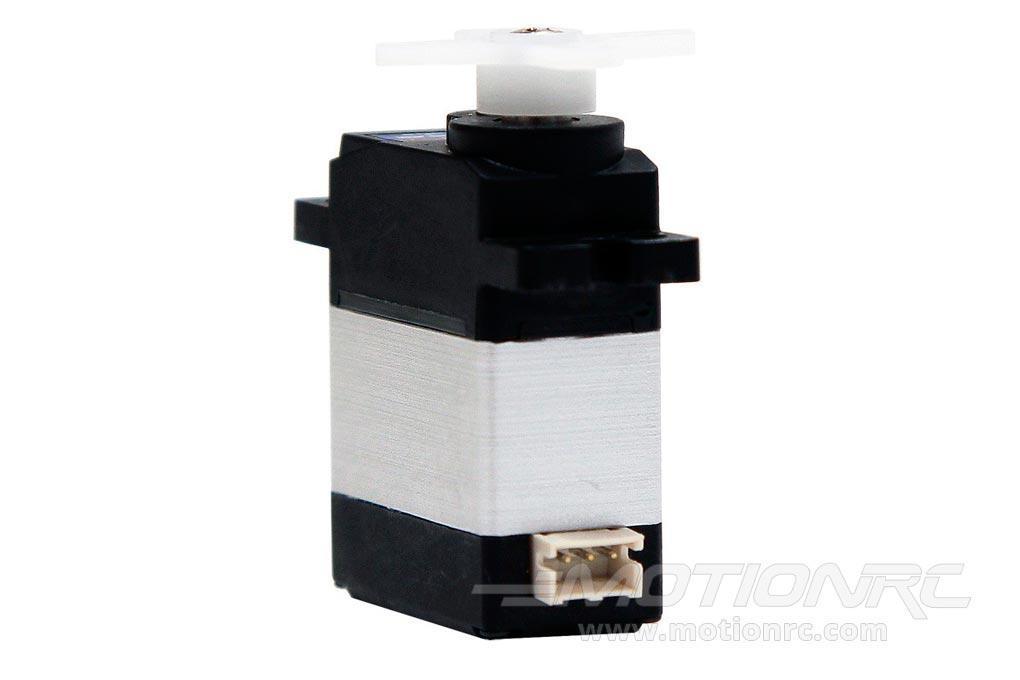

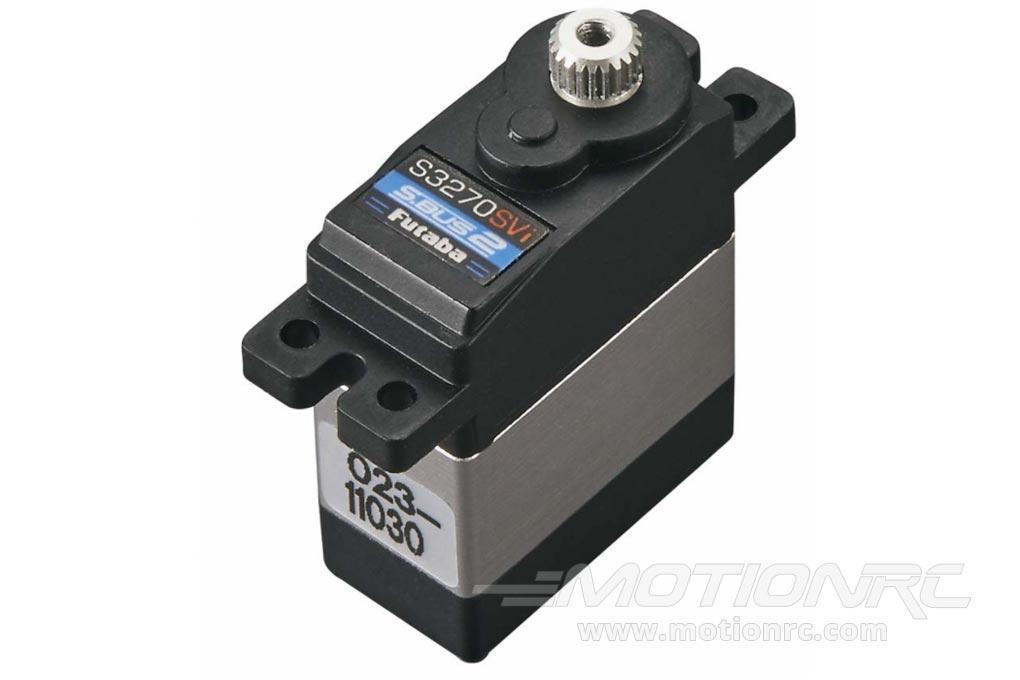

S3270SVi Programmable Metal Gear Sub-Micro Servo from Futaba - FUTM0182
The S3270SVi is a programmable S.Bus2 sub-micro servo with metal gear. The S3270SVi works well for 1400mm wingspan and smaller airplanes, small EDF jets, and 200 to 450 size helicopters.
Features:
- Programmable and compatible with S.Bus and S.Bus2 systems
- Metal gears
- High Voltage
- One year warranty
Includes:
- 1x S3270SVi programmable metal gear sub-micro servo

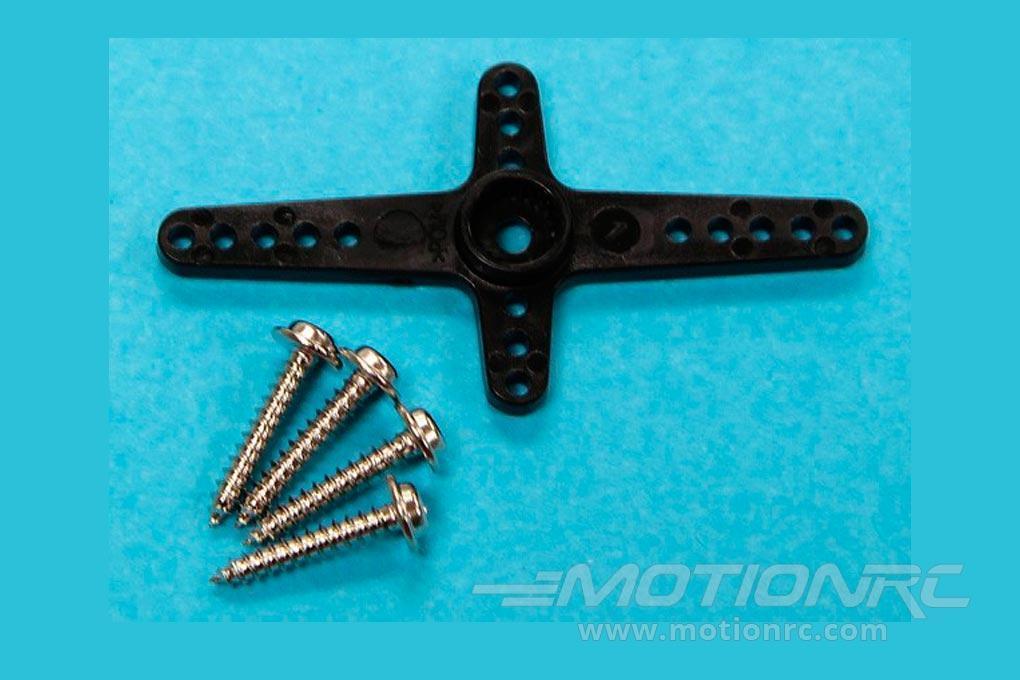

- 1x 0.71" (18mm) Four point horn
- 1x 1.7" (42.5mm) Four point horn
- 4x 1.5x11mm Mounting screws
Product Specifications:
Servo Class |
Sub-Micro |
Servo Type |
Analog |
Gear Material |
Metal |
Direction |
Standard / Normal |
Operating Voltage Range |
6.6V - 7.4V |
Speed (6.6V) |
0.12 sec @ 60 deg |
Speed (7.4V) |
0.11 sec @ 60 deg |
Torque (6.6V) |
2.6 kg/cm (36.1 oz/in) |
Torque (7.4V) |
3.0 kg/cm (41.7 oz/in) |
Current Draw at Idle |
N/A |
Current Draw Operating (No Load) |
N/A |
Dimensions (L x W x H) |
23 x 11.8 x 28.6mm |
Weight |
16.2g (0.57oz) |
Lead Length |
304.8mm / 12in |
