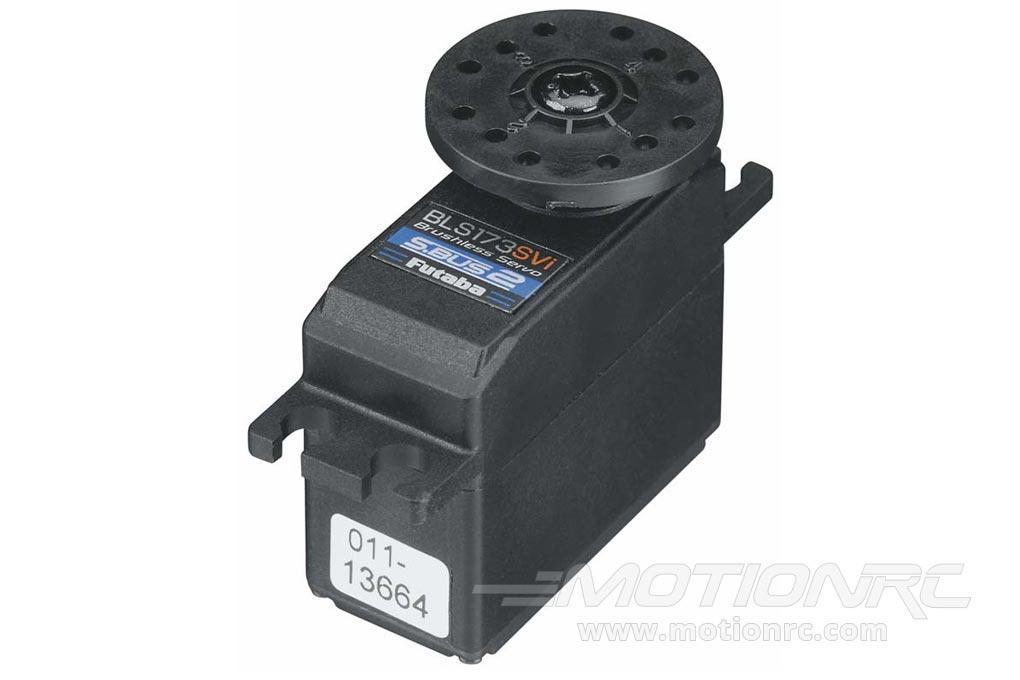

BLS173SVi High Voltage Metal Gear Mini Servo from Futaba - FUTM0184
The Futaba BLS173SVi is a programmable S.BUS2 high voltage metal gear mini-sized servo that excels in 600 size helicopters but can also be used in larger aircraft up to 2000mm wingspans. Uses a brushless motor.
Features:
- Designed for airplane, glider and EP helicopter applications
- High voltage and high torque
- Programmable S.BUS2 platform
- Brushless motor
- Metal gear train eliminates backlash and slop
- One year warranty
Includes:
- 1x BLS173SVi high voltage metal gear mini servo
- 1x 0.81" (20.5mm) round horn
- 1x 1.5" (39mm) 4-point horn
- 1x 1.2" (32mm) 6-point horn
- 4x each grommets, eyelets, and screws
Product Specifications:
Servo Class |
Mini |
Servo Type |
Analog |
Gear Material |
Metal |
Direction |
Standard / Normal |
Operating Voltage Range |
6.6V - 7.4V |
Speed (6.6V) |
0.11 sec @ 60 deg |
Speed (7.4V) |
0.10 sec @ 60 deg |
Torque (6.6V) |
6.8 kg/cm (94.5 oz/in) |
Torque (7.4V) |
7.6 kg/cm (105.6 oz/in) |
Current Draw at Idle |
N/A |
Current Draw Operating (No Load) |
N/A |
Dimensions (L x W x H) |
33 x 15 x 27.1mm |
Weight |
28g (0.99oz) |
Lead Length |
304.8mm / 12in |
