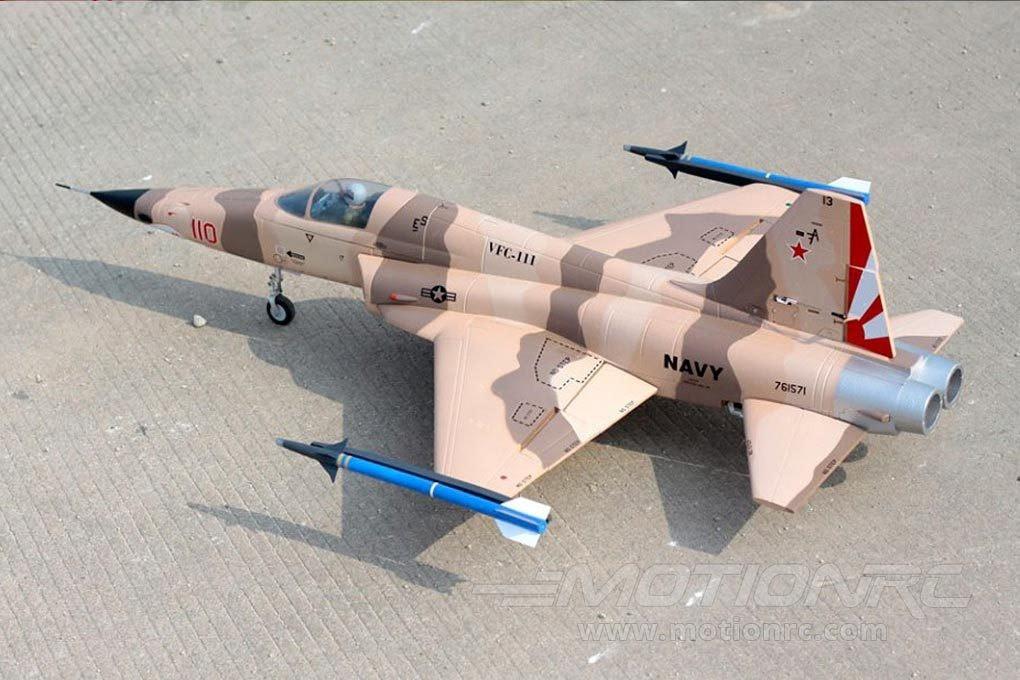

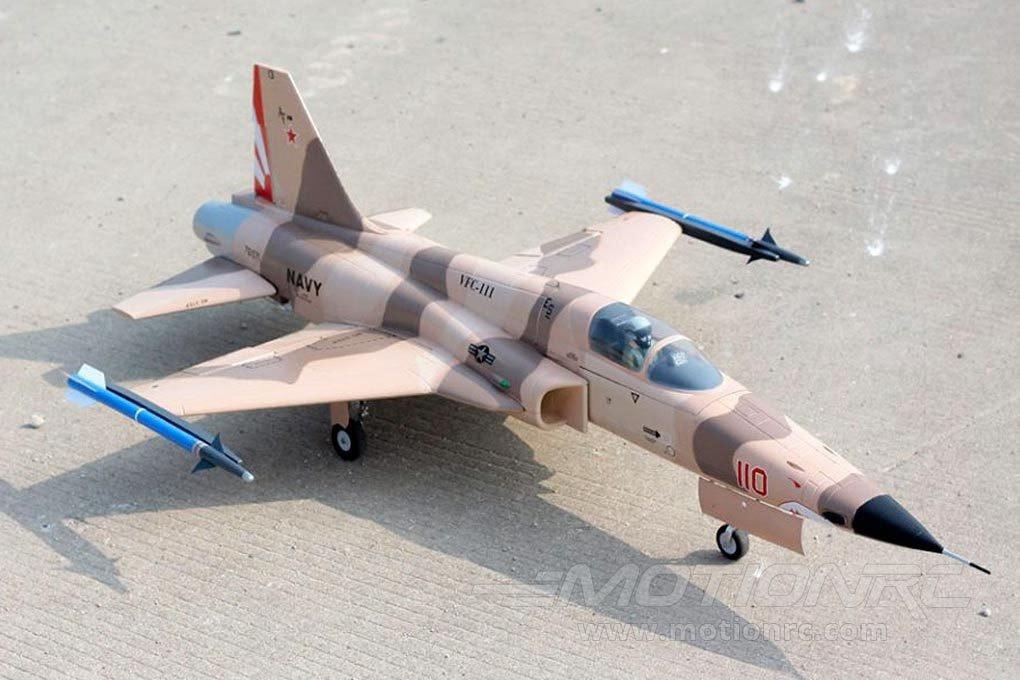

Freewing F-5 Tiger II Camo 80mm EDF Jet - PNP - FJ20811P

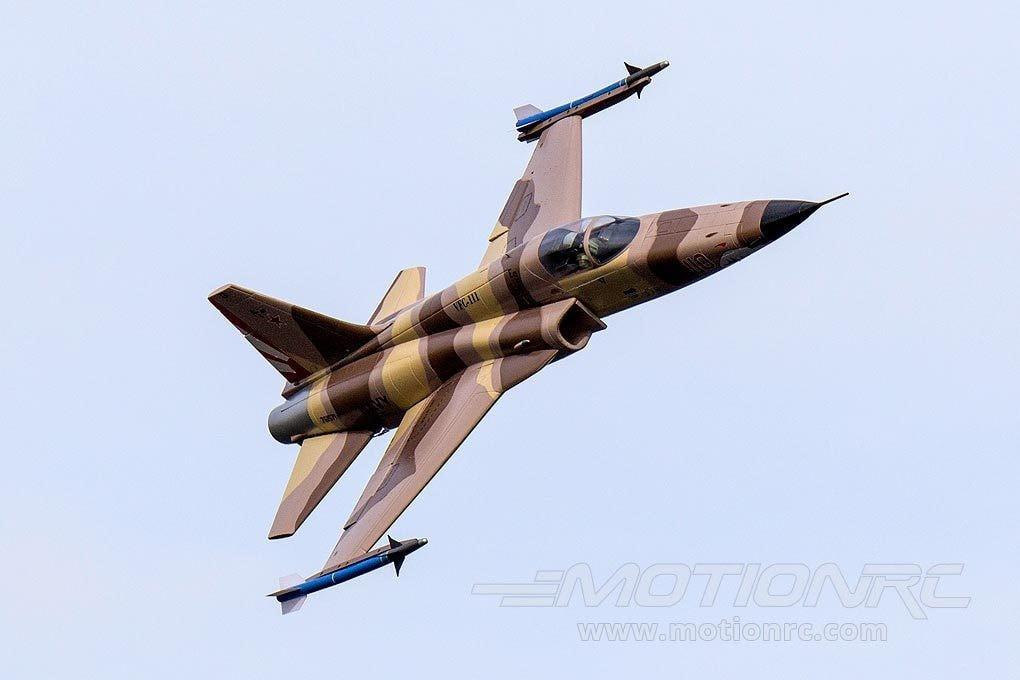

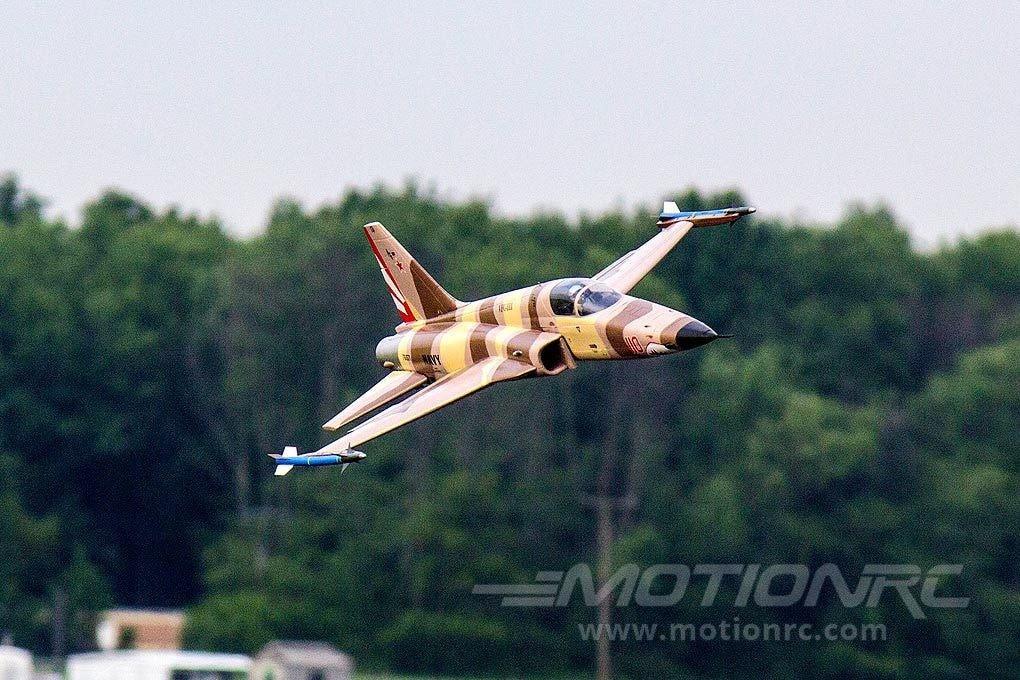

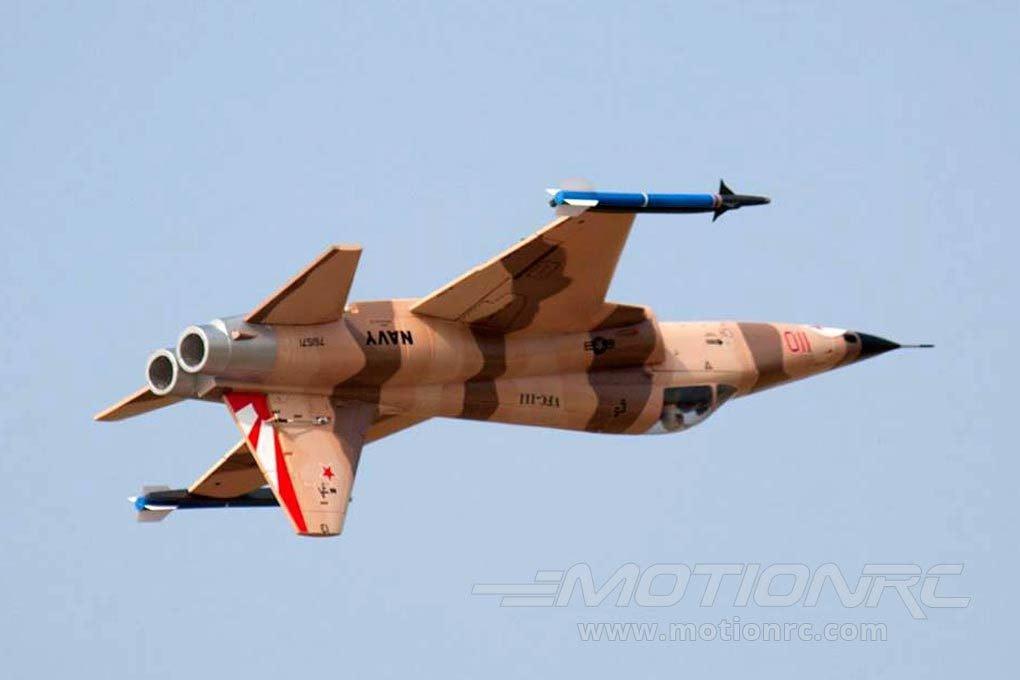

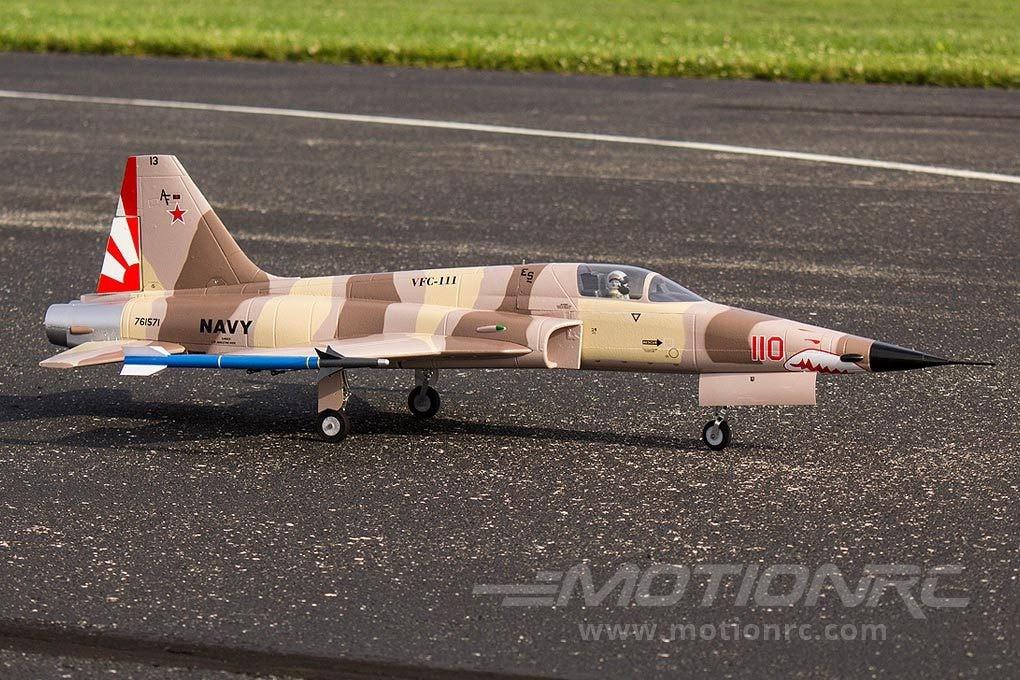

Introducing the fifth jet in Freewing's 80mm EDF Jet Series, the iconic F-5 Tiger II. This RC airplane proudly wears the livery of the CAG’s jet of the VFC-111 “Sun Downers”, an adversary training squadron in Key West, Florida. Freewing’s rendition incorporates a thicker airfoil to enhance the lifting body design of the original F-5, imparting the stability of an RC model with the standoff scale looks of the real jet. This exciting F-5 model provides speed and scale agility in a stable platform that also looks great!
Freewing's 80mm F-5 Tiger II is the perfect size for easy transport without the need for disassembly. Optimized to fly our common Admiral 6s 4000mAh or 5000mAh lipo battery with an EC5 connector, the Freewing F-5’s pre-installed electronics and control hardware minimizes assembly time to about one hour.
Visit the Official Freewing F-5 Tiger II Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Precise Control Hybrid metal gear servos on the full flying stabilizers and other control surfaces provide precise control throughout the F-5’s flight envelope. |
 |
Officially Licensed Freewing’s F-5 is proud to be officially licensed by Northrop Grumman. |
 |
Highly Detailed Thoughtful scale details include a hand painted pilot, full instrument panel decals. |
 |

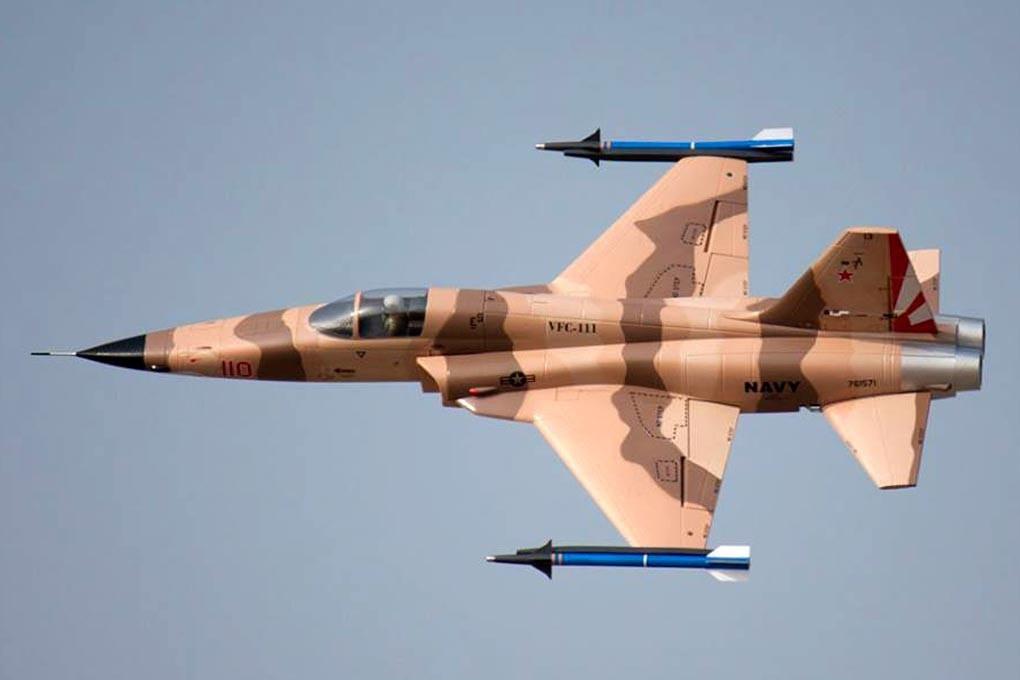

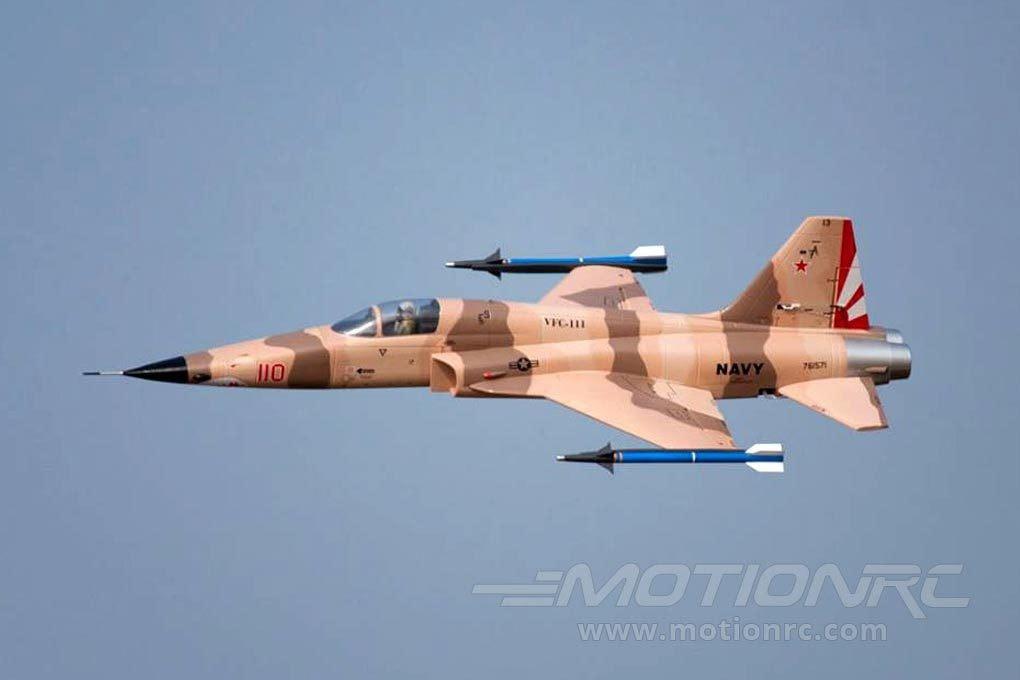

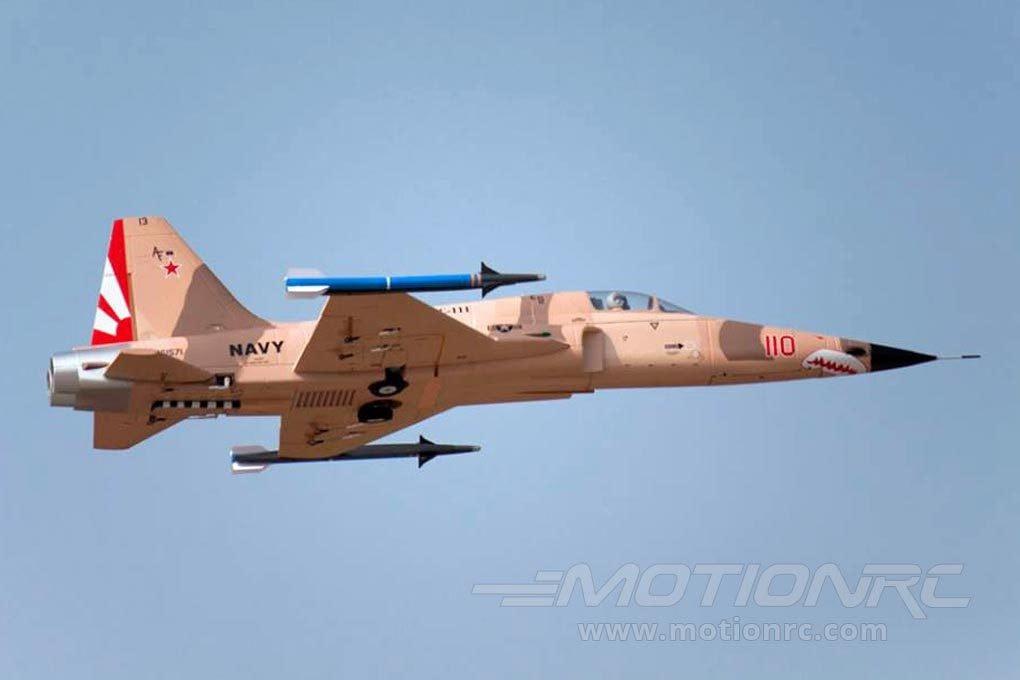

Armed for Action! Fully painted AIM-9 Test Missiles quickly mount onto the wingtip rails. |
 |

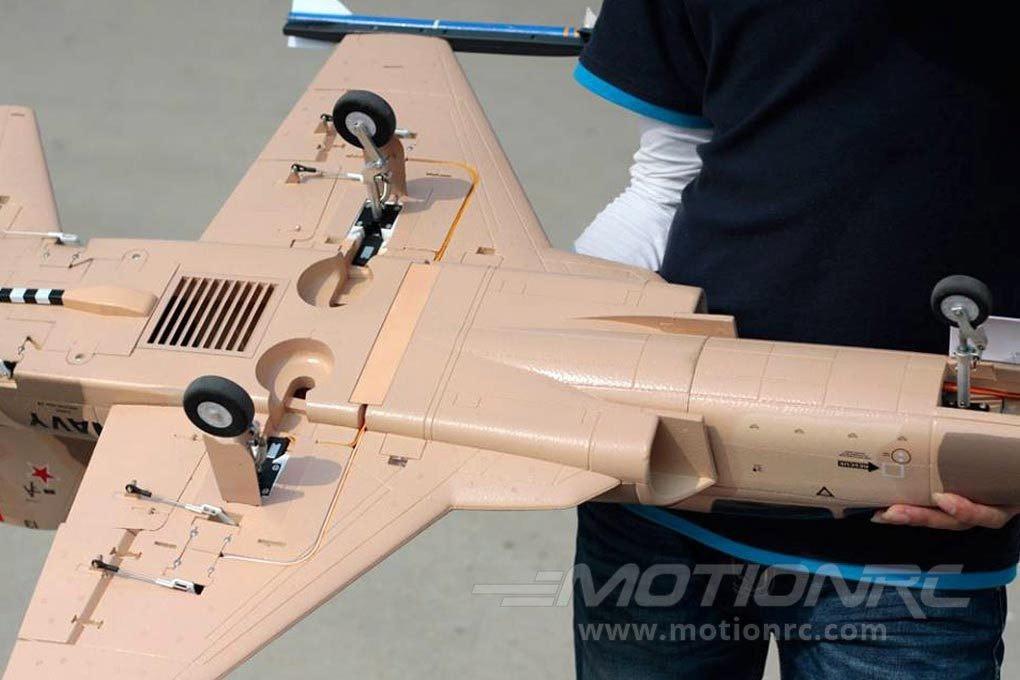

Electric Retracts Electronic retractable landing gear with all metal shock-absorbing struts help soak up bumpy landings. |
 |

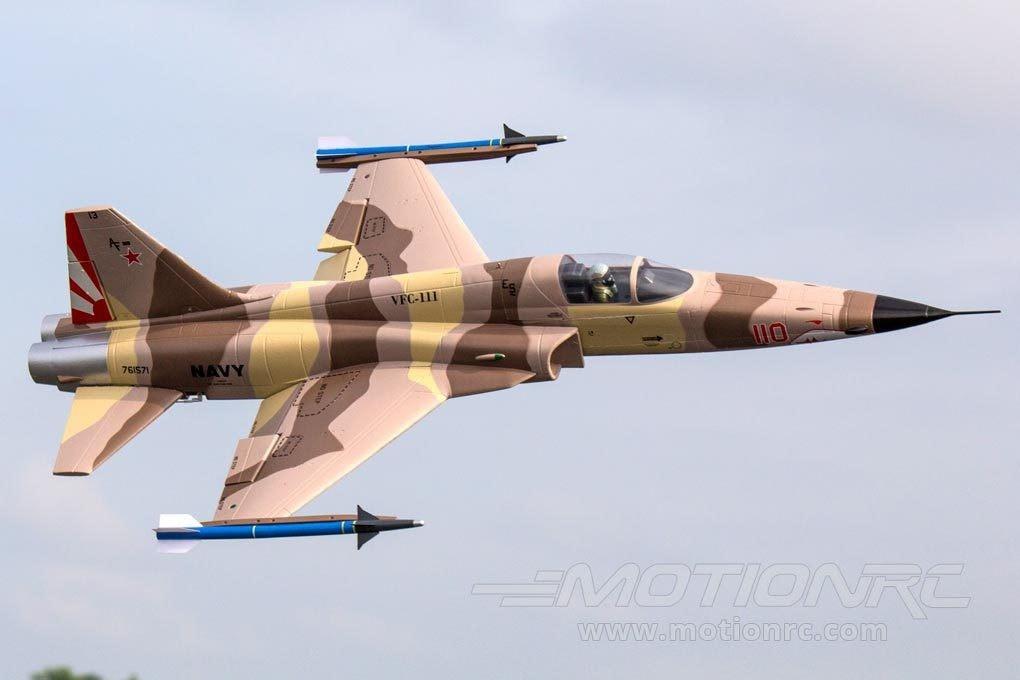

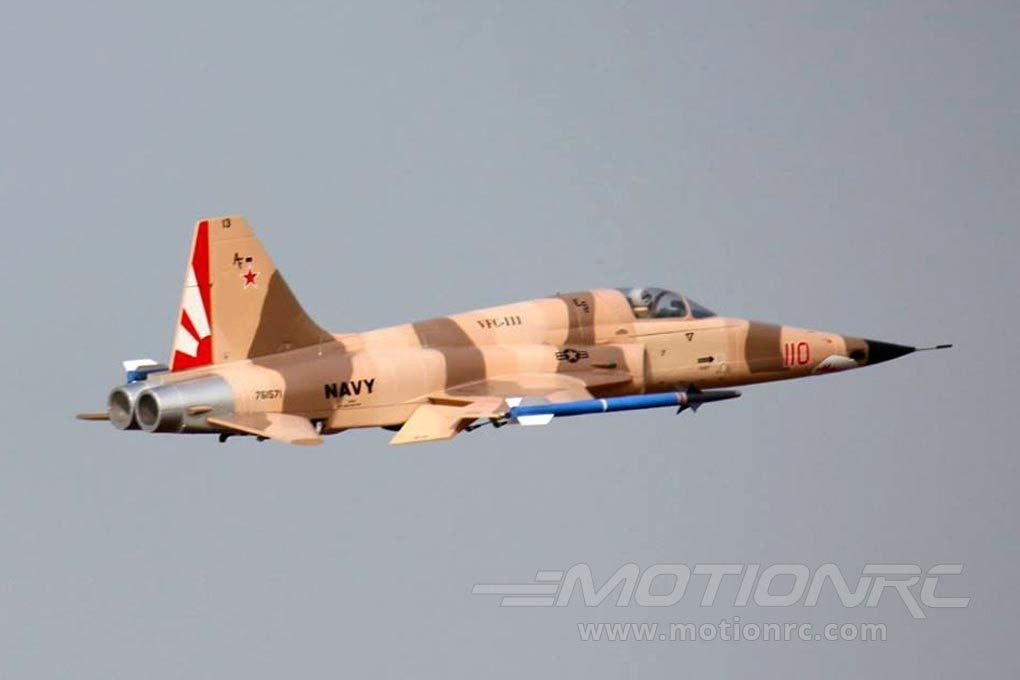

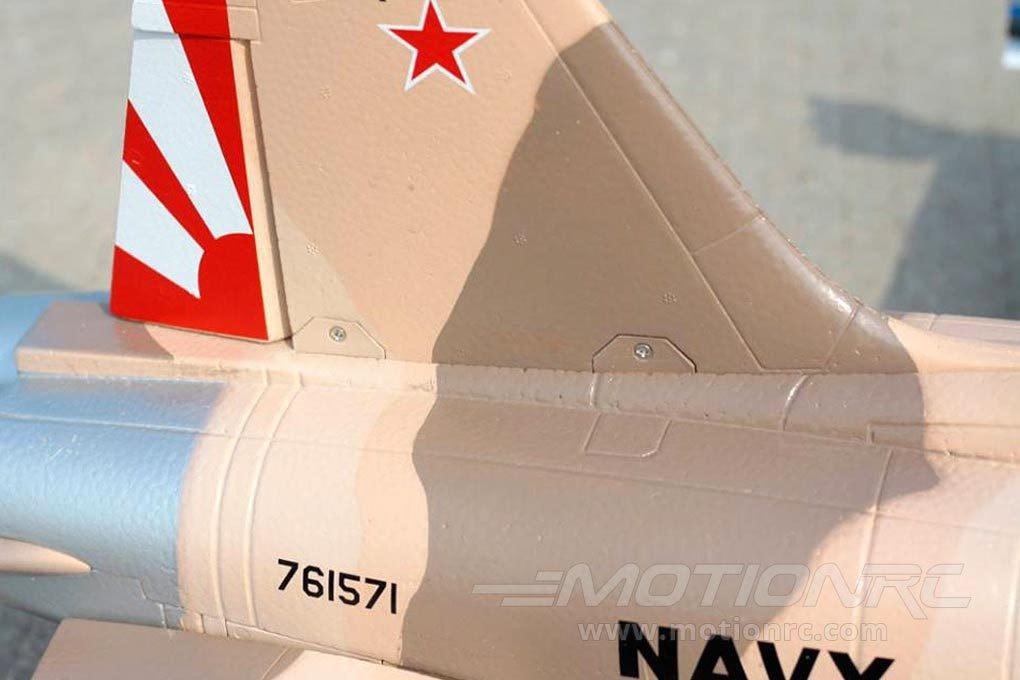

Honor Aviation History! Factory-applied paint and decals honor the CAG’s livery of the VFC-111 “Sun Downers” Squadron. |
 |
High Strength Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility. |
 |
Quality Hinges Nylon hinges are used on all control surfaces, which provides longer lifespan than foam hinges. |
 |
Easy To Transport Removable wings and stabilizers attach with screws for convenient transport and storage. |
Features:
- Model officially licensed by Northrop Grumman
- 12 Blade factory balanced EDF with metal housing and 3530-1680KV brushless outrunner motor produces realistic jet turbine sound
- Composite fan blades combined with metal EDF housing make the Super Scorpion AMA compliant
- Super scale details include hand painted, scale-sized pilot and full instrument panel
- Proudly displaying the livery of the CAG’s jet of the VFC-111 “Sun Downers”
- 80 Amp Hobbywing ESC with 5A BEC

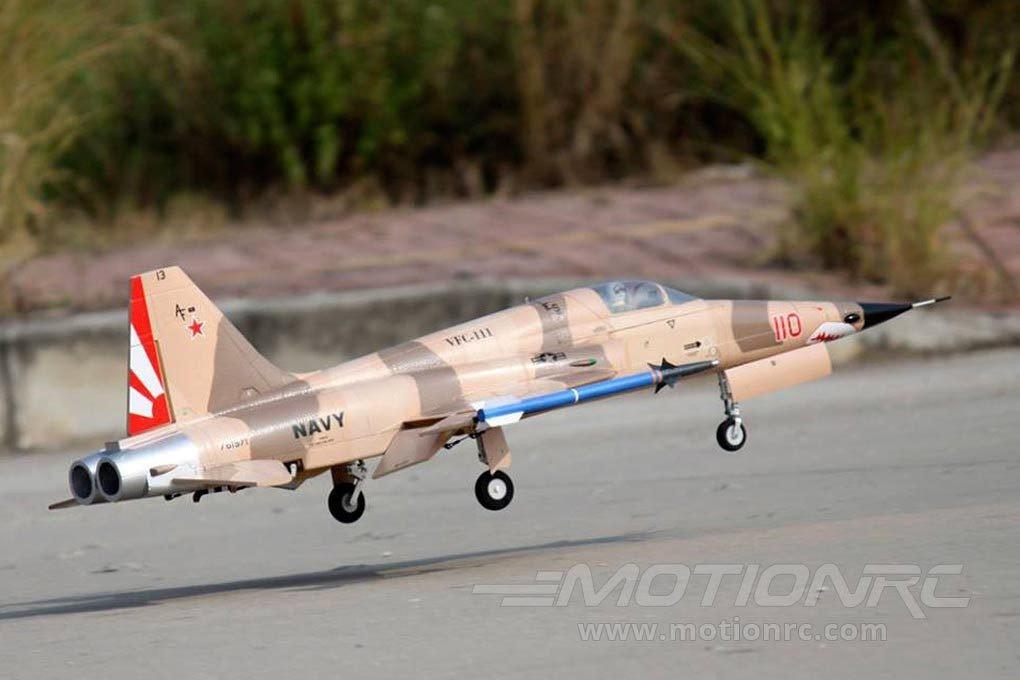

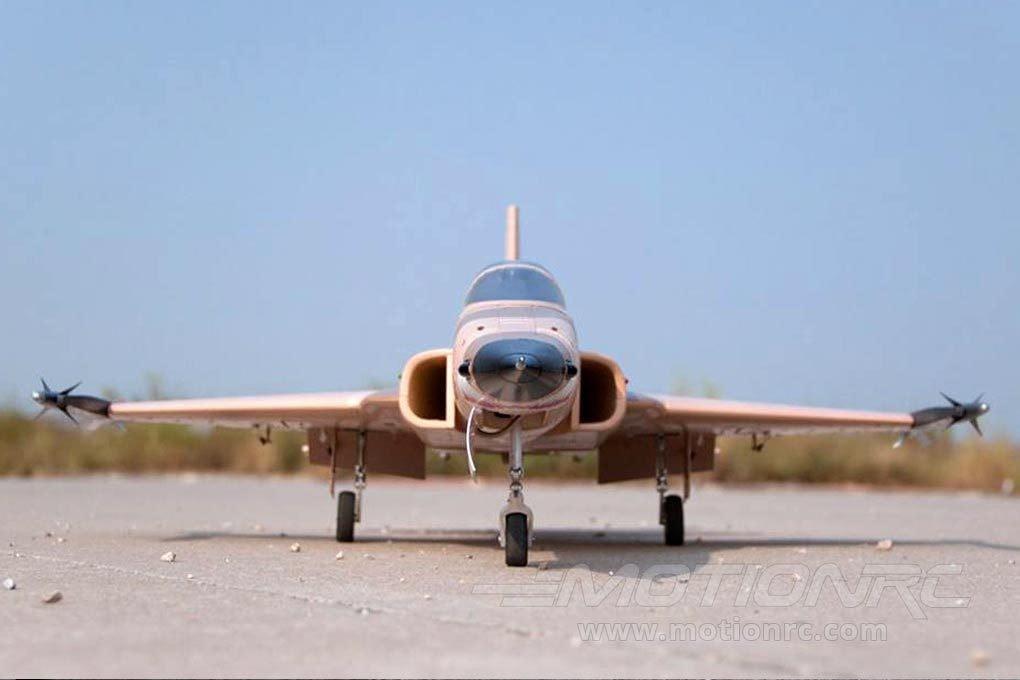

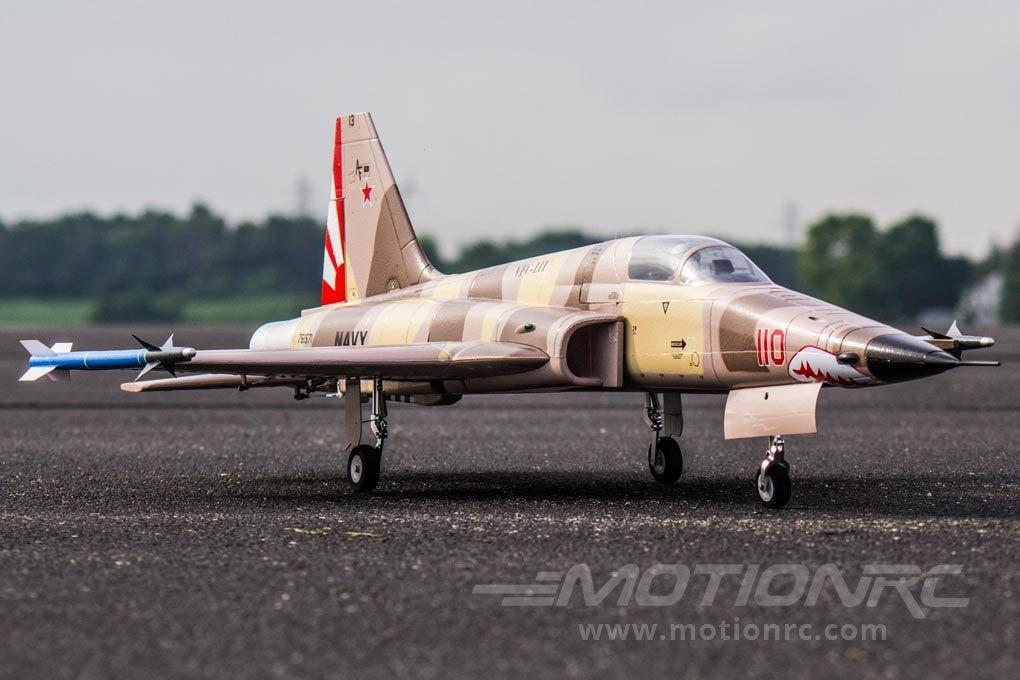

- Electronic retractable landing gear with all metal shock-absorbing struts
- Steerable, shock absorbing nose gear for enhanced ground maneuverability
- Spring operated nose gear door
- Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
- Nylon hinges on all control surfaces (superior to foam hinges)

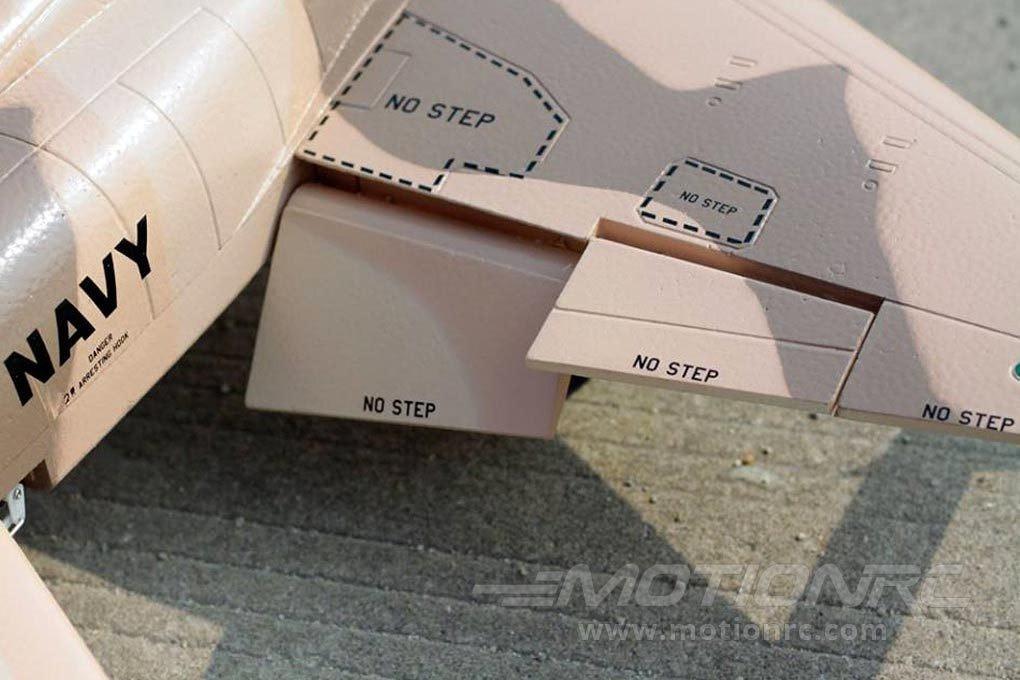

- Gapless flap hinges
- Outrunner motor, servos, ESC and EDF come pre-installed for your convenience
- Removable wings and stabilizers for convenient transport
Includes:
- Freewing 80mm 12-Blade Metal EDF F-5 Tiger II Camo - PNP
Requires:
- 6 Channel Radio - Select a minimum 6 channel radio from our Radio Collection
- 6 Channel Receiver - Select a minimum 6 channel receiver from our Receiver Collection

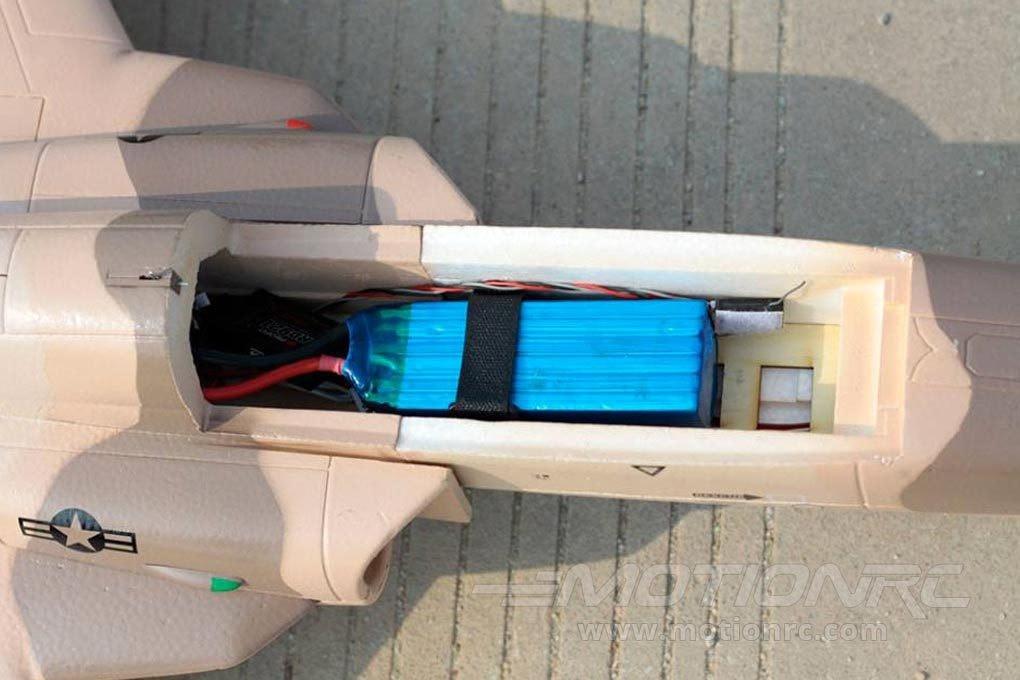

- 6 Cell 22.2V 4000 mAh LiPo Battery with EC5 connector - EPR40006PRO
- 6 Cell Compatible Battery Charger - Select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
Wingspan |
800mm / 31.49in |
Length |
1250mm / 49.21in |
Flying Weight |
2200g / 78oz |
CG (Center of Gravity) |
Please refer to the manual |
Power System |
3530-1750Kv Brushless Outrunner Motor |
Electronic Speed Control |
80A ESC, 5A BEC, EC5 Connector |
Propeller / EDF |
80mm Metal EDF with 12 Blade Fan |
Servos |
|
Landing Gear |
Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts |
Required Battery |
6S 22.2V 4000mAh-5000mAh LiPo (required) |
Required Radio |
6 Channel |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon hinges |
Material |
EPO Foam |
Skill Level |
Advanced |
Build Time |
30 Minutes |
Recommended Environment |
Outdoor |
Videos
Product Videos
Spare Parts
Product Spare Parts
0 - 32 of 61 results
Upgrades
Product Upgrades
1 - 11 of 11 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
Product Updates:
- June 27, 2015 - The Swiss version of this model does NOT include a weapons set.
