FCX24 Green Mercedes-Benz Unimog 421 1/24 Scale 4WD Crawler - RTR from FMS - FMS12405RTRGN
Version Info: This truck is delivered as "RTR", however does require 4 x AAA batteries for the transmitter sold separately (see Requires below for details).

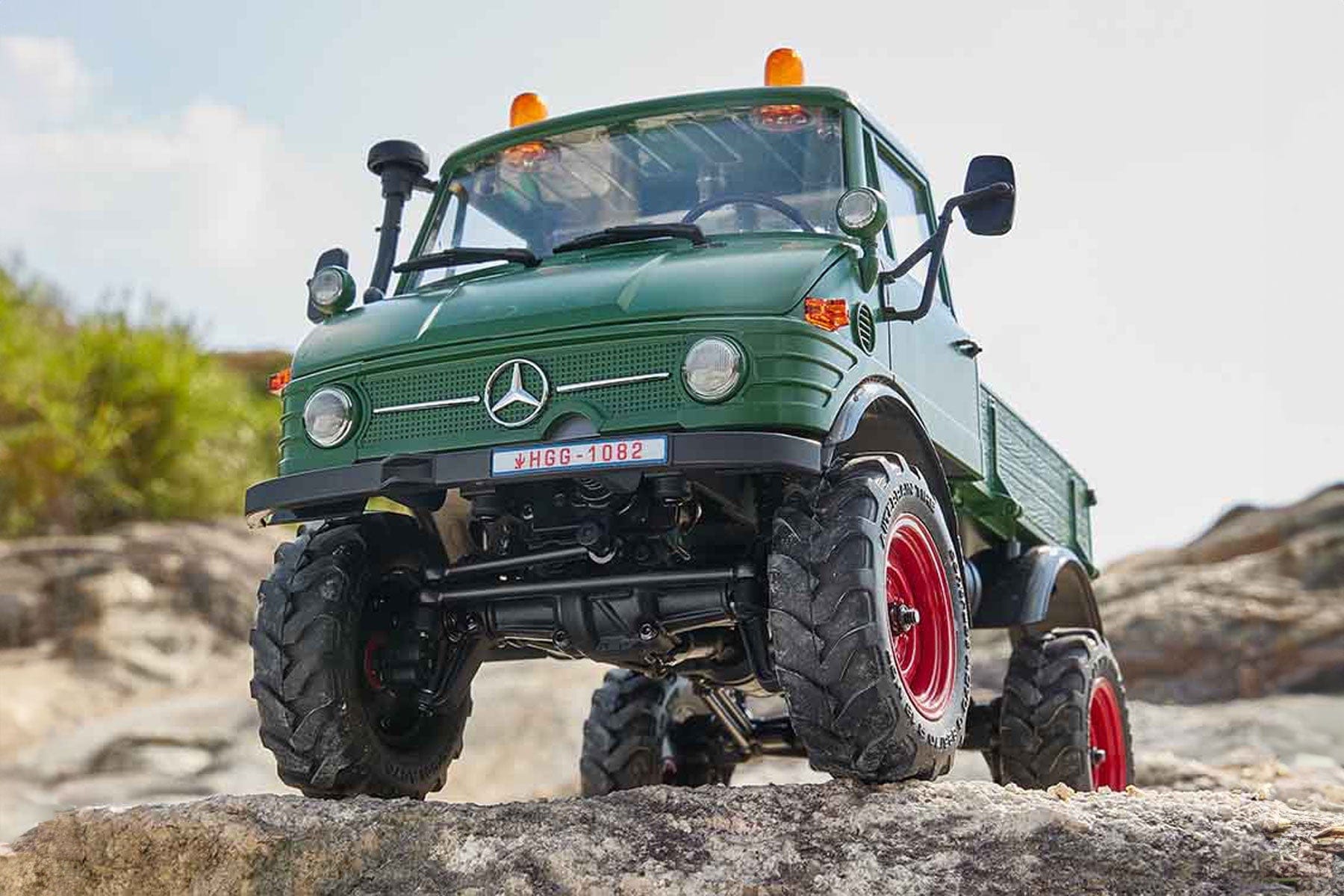

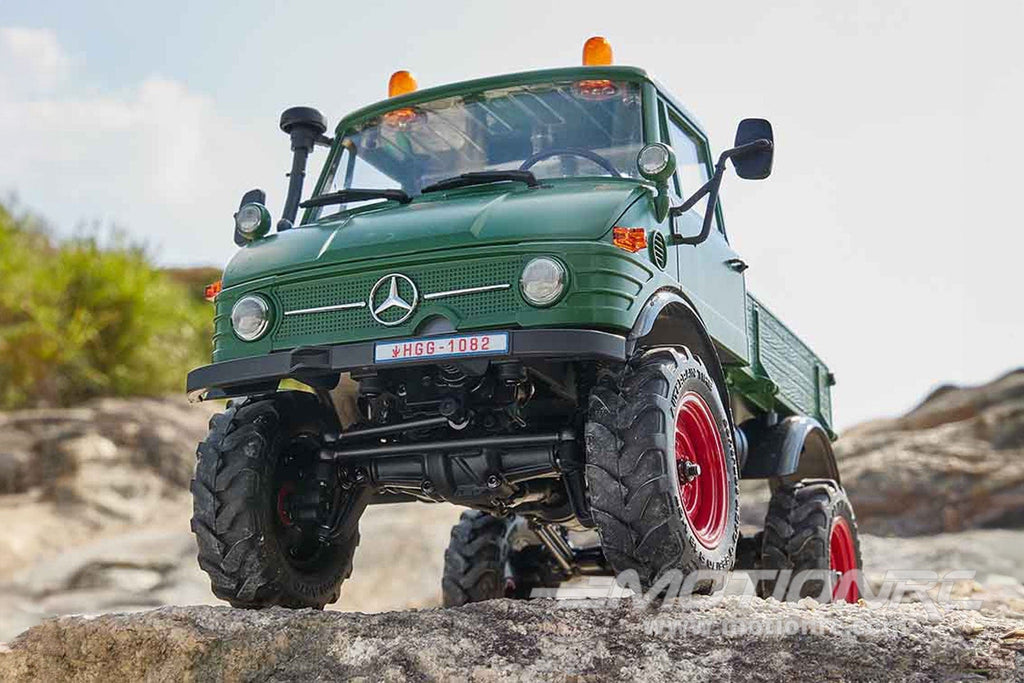

Introducing the officially licensed FMS 1/24 scale FCX24 Mercedes-Benz Unimog 421 Rock Crawler. Authorized by Daimler-Benz AG, this model features a highly detailed grille, widened rear-view mirrors, snorkel, and orange warning lights. The engine hood can be opened for battery replacement and serves as storage for the electronic board. The rear cargo compartment and three-side wall panels are made of intricately patterned wood, simulating real wood texture.
The FCX24 chassis is a high-performance, high-strength integrated nylon molding with metal side beams, providing a durable and rigid platform. Its multi-link suspension with coil springs and hydraulic shock absorbers ensures maximum axle articulation over rough terrain. The two-speed high-torque transmission transmits power to the front and rear axles through metal universal drive shafts, equipped with portal axles for increased ground clearance and reduced differential load. The low gear ratio of 99:1 offers strong climbing torque, while the 24.75:1 ratio provides a top speed of up to 8km/h. The 2-speed gearbox is operated by the transmitter via an on-board servo.
The Unimog 421 features an easy-to-remove ABS hard bodyshell, providing highly accurate scale detail and durability. It also includes a fully functioning light system with headlights, turn indicators, and roof lights for added realism. The model arrives ready to run, fully assembled with water-resistant electronics, including a high-torque brushed 130 motor, 2-in-1 receiver/ESC, metal-geared steering servo, and a 7.4V (2S) 380mAh LiPo battery for up to 30 minutes of run time. Simply charge the battery with the supplied USB charger, install 4 x AAA batteries into the included transmitter, and you're ready to go.
Visit the Official FMS FCX24 Mercedes-Benz Unimog 421 1/24 Scale 4WD Crawler Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Ready to Run The only thing needed to get running is 4x AAA batteries for the transmittery—everything else is included in the box. |
 |
Available In 3 Color Choices Three different colors are available to choose from, giving the model a unique appearance and personality. |
 |
Functional Hood The clever active design of the hood not only allows it to be easily opened, making it convenient to replace the battery, but also stores the remove control system board. |
 |
Remote Control Lighting Intelligent lighting control modules add more fun to the overall experience, indoors or outdoors, day or night. |
 |
High-Performance Chassis Frame Using the powerful FCX24 climbing chassis gives the Unimog high strength and outstanding control while ensuring stability. |
 |
Portal Axles The portal axle design not only effectively increases the ground clearance of the differential, but also brings excellent suspension adaptability to the whole vehicle to travel complex terrain. |
Features:
- Daimler-Benz AG licensed
- Completely ready to run model
- Functional hood
- Restored interior features
- Innovative two-speed transmission
- Portal axle system with metal gears
- Four-link suspension system
- Remotely controlled LED lighting system
- Metal-geared steering servo
- High-strength integrated nylon chassis frame design
Includes:
- FMS FCX24 Green Mercedes-Benz Unimog 421 1/24 Scale 4WD Crawler - RTR
- 2.4GHz transmitter
- 2-in-1 receiver / ESC (installed)
- 130 brushed motor (installed)
- 9g transmisson servo (installed)
- Metal gear digital steering servo (installed)
- 7.4V 380mAh LiPo Battery
- USB Battery Charger
- Hex Wrench Socket
- Product Manual
Requires:
- 4x AAA alkaline batteries for transmitter - we recommend Admiral AAA Rechargeable Batteries (4 Pack)
Product Specifications:
Model Scale |
1/24 |
Length |
249mm / 9.8in |
Width |
153mm / 6.0in |
Height |
160mm / 6.3in |
Weight (No Battery) |
400g / 14.2oz |
Wheelbase |
142mm / 5.6in |
Ground Clearance |
40mm / 1.5in |
Body |
ABS Plastic, factory painted and decorated |
Chassis |
Composite |
Drivetrain |
4WD |
Wheel Size (Diameter x Width) |
59mm x 20mm |
Wheel Hex Size |
N/A |
Tire Tread |
Multi-surface |
Bushing Material |
N/A |
Suspension |
Four link |
Shock Type |
Oil-filled |
Transmission |
2-speed |
Gear Pitch |
N/A |
Internal Gear Ratio |
N/A |
Final Drive Ratio |
N/A |
Pinion |
N/A |
Spur Gear |
N/A |
Differential |
N/A |
Ball Bearings |
N/A |
Brakes |
Electronic |
Electronic Speed Control |
2-in-1 RX/ESC |
Motor |
130 brushed |
Battery |
2S 7.4V 380mAh LiPo |
Max Battery Dimensions (L x W x H) |
N/A |
Servos |
Metal gear digital steering servo and 9g transmission servo |
Radio |
2 channel (included) |
Lights |
Yes |
Sound |
No |
Water Resistant |
Yes |
Skill Level |
Beginner |
Assembly Time |
None |
Recommended Environment |
Indoors/Outdoors |
