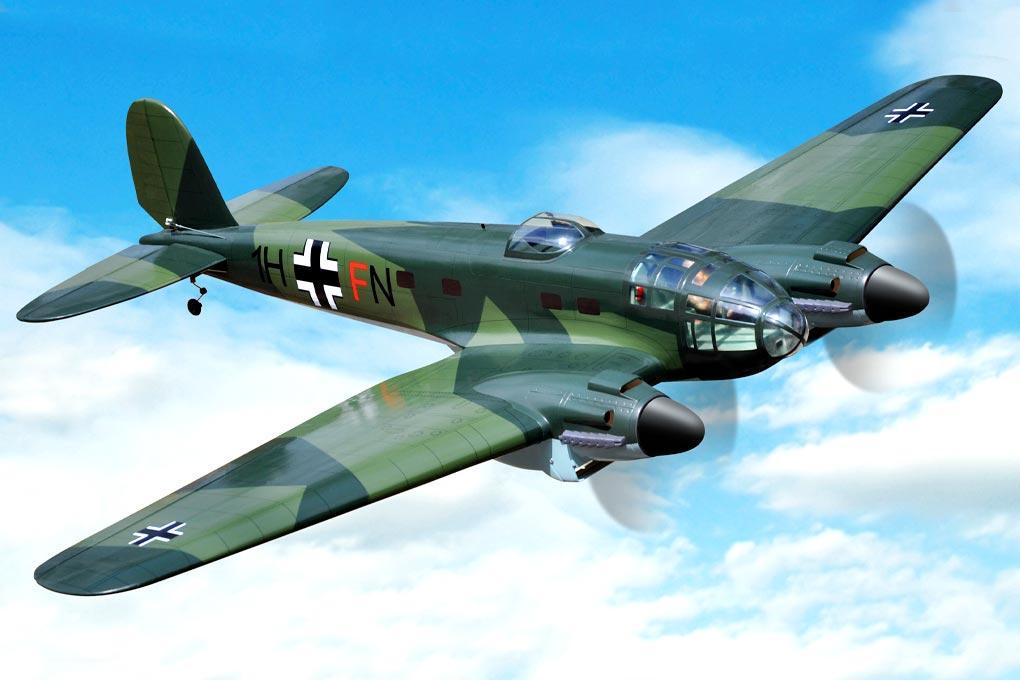

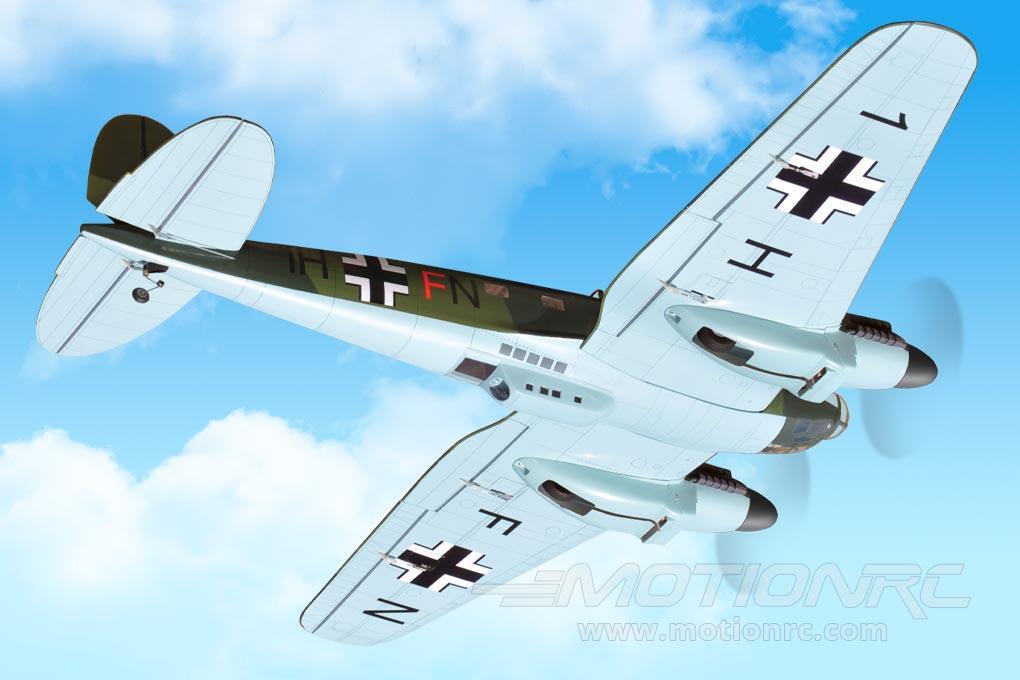

Heinkel He-111 1750mm (68.9") Wingspan from Black Horse - Balsa Wood ARF - BHHE00
Designed in 1934 to get around the restrictions imposed by the Treaty of Versailles on military aircraft production, the Heinkel He-111 was initially produced as a commercial airliner that could be quickly and cheaply converted for military use as a bomber.
The He-111 served with the Luftwaffe throughout WW2, serving on all fronts and in a variety of roles as well as the bomber role synonymous with the type. After WW2, it was adopted by Spain as the CASA 2.111 with whom it served until 1973.
The model is scaled to approximately 1:13 and attention was paid to a true to original appearance and best flight characteristics. The model was designed for electric drives but can also be flown using a matched pair of internal combustion engines of about 4.5cc displacement.
Visit the Official Black Horse Heinkel He-111 1750mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- High level of prefabrication right out of the box
- Lightweight, strong, and partially sheeted laser cut balsa and plywood construction
- Panel lines and details printed directly onto the pre-applied, high quality covering
- Mylar C/A hinges on all control surfaces
- Large easy access battery/servo access hatches

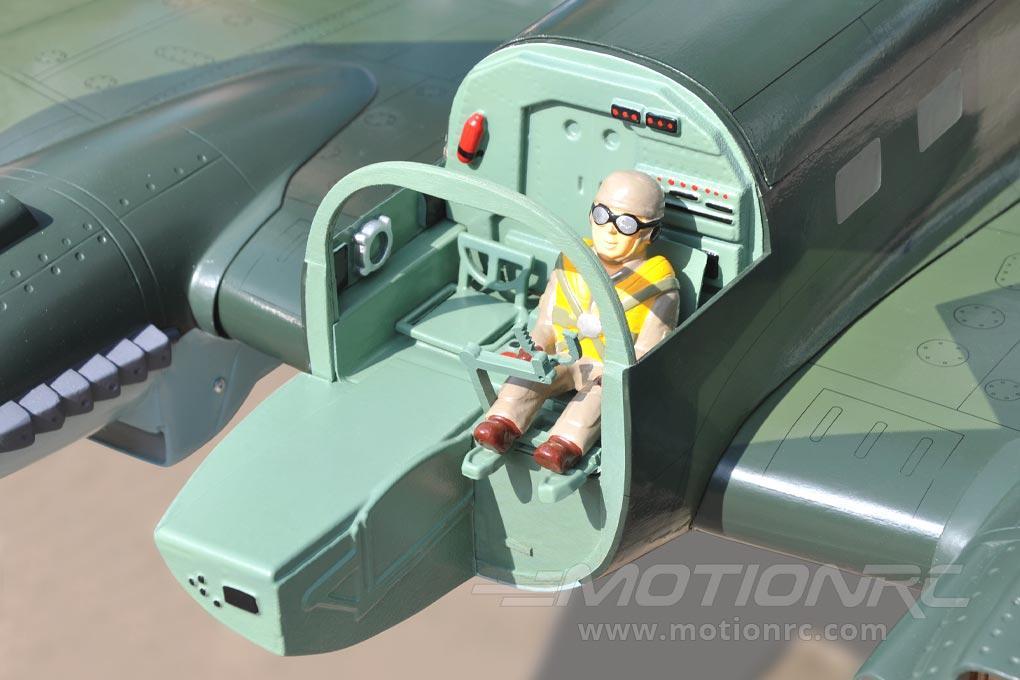

- Painted and detailed cockpit/interior pre-installed
- Fiberglass control horns
- Comprehensive control and fitting accessories included
- Two-piece, bolt-on wings simplify transportation and assembly.
- Painted and details fiberglass cowl
- Mounts for both electric and gas power options included
- Fully illustrated instruction manual included and also available for download (see tab above)
Includes:
- Black Horse Heinkel He-111 1750mm (68.9") Wingspan - ARF
Requires:
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 400-600 Watt brushless outrunner motor - we recommend the Admiral GP2 3520-950Kv brushless motor
- TWO 50-70 Amp brushless ESCs - we recommend ZTW Mantis G2 65A ESC with 8A SBEC Multi-Pack (2 ESCs)
- 7x 17g standard servos - we recommend Hitec HS-85BB High Torque Micro Servo
- Electronic 90 degree retracts (81 x 44 x 29mm) - we recommend TWO Xwave RM400-90 Electronic Retracts
- TWO 3 Cell 11.1V 2600 - 3700 mAh LiPo Batteries - we recommend TWO Admiral 2600mAh 3S 11.1V 30C LiPo Batteries with XT60 Connector
- Electric propeller - we recommend TWO APC 11x5.5 Thin Electric Propellers
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection

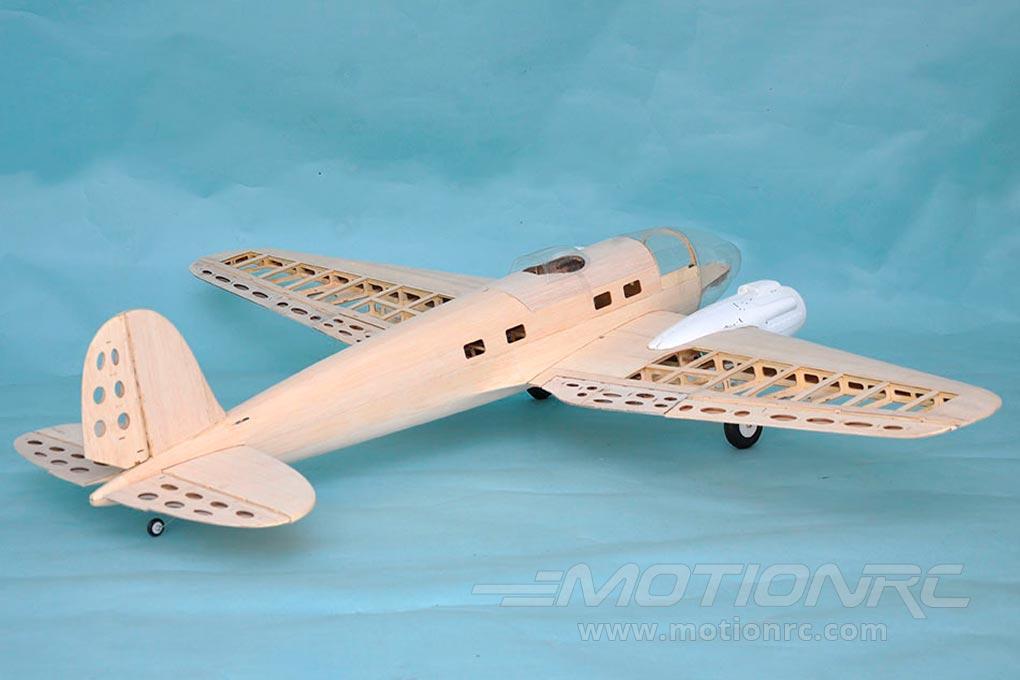

Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/13 Scale |
Wingspan |
1750mm / 68.9in |
Length |
1280mm /50.39in |
Weight |
3200-3500g / 7.04-7.7lbs |
CG (Center of Gravity) |
130mm from the leading edge wing root |
Power System |
400-600 Watt brushless outrunner motor (required) |
Electronic Speed Control |
50-70A (required) |
Propeller / EDF |
Two 11x5.5 propellers |
Servos |
|
Landing Gear |
Electronic 90 degree retracts (81 x 44 x 29mm) (required) |
Required Battery |
TWO 3 Cell 11.1V 2600 - 3700 mAh LiPo Batteries (required) |
Required Radio |
6 Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Fiberglass |
Material |
Balsa and plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
