Mercedes Benz Arocs 3363 1/14 Scale Tractor Truck - KIT from Tamiya - TAM56352

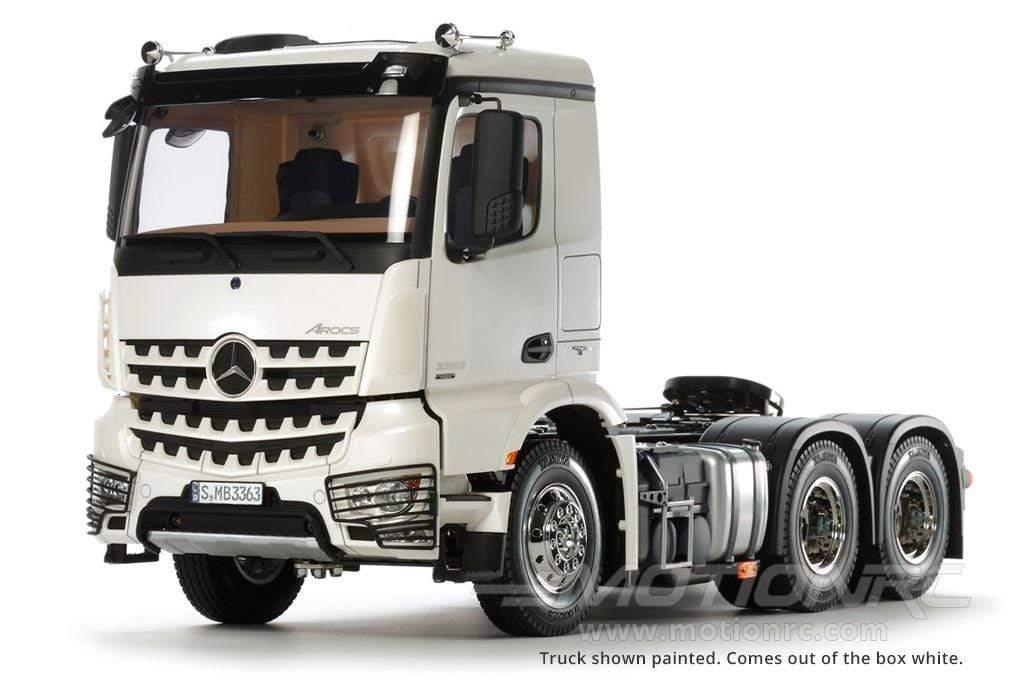

Version Info: This truck is a KIT. Assembly and painting is required. A plain white cab comes out of the box ready for paint. Photos show a completed and painted model. Minimum 4+ channel radio system, ESC, battery, charger and servo will need to be purchased separately.
Tamiya is world-renowned for producing industry-leading RC scale tractor trucks for generations. The Tamiya Mercedes Benz Arocs 3363 is powered by a 540 motor and 3-speed transmission, its durable drivetrain spins both rear dually axles supported on a realistic leaf spring and shock suspension. The Mercedes Benz Arocs 3363's metal C-Channel ladder frame keeps the power to the pavement when hauling optional accessories. With its base-white cab and decal set, explore endless customization possibilities to build this KIT from the ground up and create your personalized dream scale hauler!
Your Tamiya truck is backed by Motion RC's world-renowned customer service and technical support. Drive on!
Visit the Official Tamiya Mercedes Benz Arocs 3363 1/14 Scale Tractor Truck Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
540-Sized Motor and 3-Speed Transmission The 540-sized brushed motor applies power through a selectable 3-speed transmission to drive dual rear axles. |
 |
Exceptional Scale Detail Scale details surround this truck for exceptional realism including accurate interior details such as dashboard and seats. |
 |
Dual Rear Axles Each axle is supported with leaf spring and shocks. |
 |
Choose Your Own Paint Colors The cab comes plain white out of the box so you can choose any colors you wish to paint and finish your truck in style. |
 |
1/14 Scale This truck comes in an impressive 1/14 scale. Coming in at close to 2 feet in length, it has an ideal on-road presence while being convenient to transport. |
 |
Add Your Own Electronics and Drive! Once you add your preferred electronics you're ready for those on-road adventures. |
Features:
- Exceptional scale detail and realism brings this truck to life on every level
- Accurate interior details such as dashboard and seats
- Gloss and matte finished metal-plated parts further heighten the model's realism
- Includes a powerful 540-sized brushed motor driven by a 3-speed transmission
- Dual rear axles each supported with leaf spring and shocks
- Cab comes out of the box white so you can paint your chosen custom scheme
Includes:
- Tamiya RC Mercedes Benz Arocs 3363 1/14 Scale Tractor Truck - KIT
Requires:
- 4 Channel radio - select a minimum 4 channel radio from our Radio Collection
- 4 Channel receiver - select a minimum 4 channel receiver from our Receiver Collection
- 6 Cell 7.2V NiMH Brushed ESC
- Standard size servo - we recommend the Hitec HS-311 Plastic Gear Standard Servo
- 6 Cell 7.2V 1600mAh NiMH battery with universal connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
Model Scale |
1/14 |
Length |
N/A |
Width |
N/A |
Height |
N/A |
Weight (No Battery) |
N/A |
Wheelbase |
272mm / 10.7in |
Ground Clearance |
N/A |
Body |
ABS Plastic |
Chassis |
Semi-Truck |
Drivetrain |
Rear 2-Axle Drive |
Wheel Size (Diameter x Width) |
N/A |
Wheel Hex Size |
N/A |
Tire Tread |
N/A |
Bushing Material |
Metal and Plastic |
Suspension |
Leaf Spring |
Shock Type |
Friction Damper |
Transmission |
3-Speed |
Gear Pitch |
N/A |
Internal Gear Ratio |
N/A |
Final Drive Ratio |
1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1 |
Pinion |
N/A |
Spur Gear |
N/A |
Differential |
Gear |
Ball Bearings |
N/A |
Brakes |
Electronic |
Electronic Speed Control |
6 Cell 7.2V NiMH Brushed ESC (required) |
Motor |
540-Brushed |
Battery |
7.2V 1600mAh (required) |
Max Battery Dimensions (L x W x H) |
N/A |
Servos |
1x standard size (required) |
Radio |
4+ Channel (required) |
Lights |
No |
Sound |
No |
Water Resistant |
N/A |
Skill Level |
Intermediate |
Assembly Time |
3+ Hours |
Recommended Environment |
On-road, smooth, paved surfaces |
