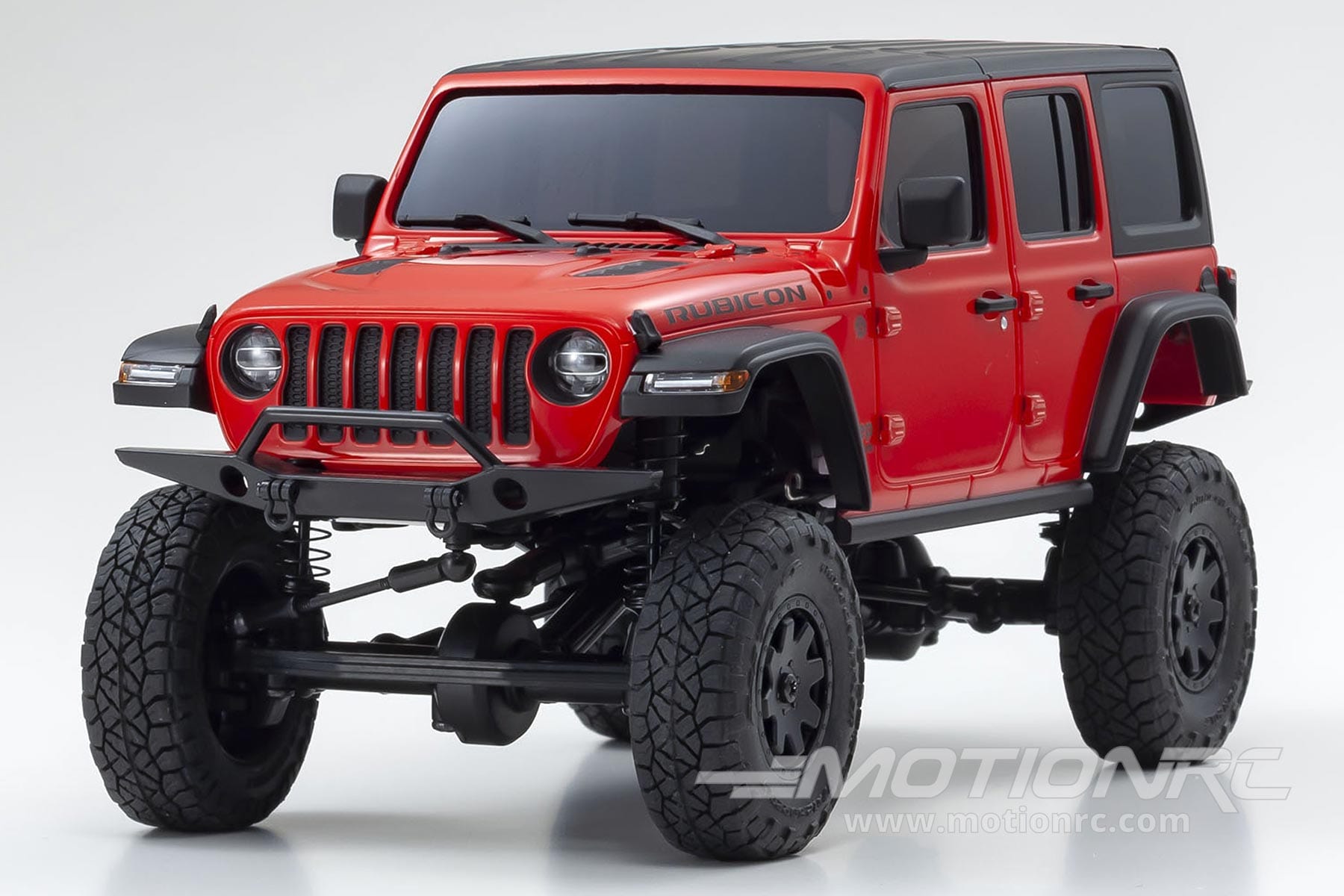

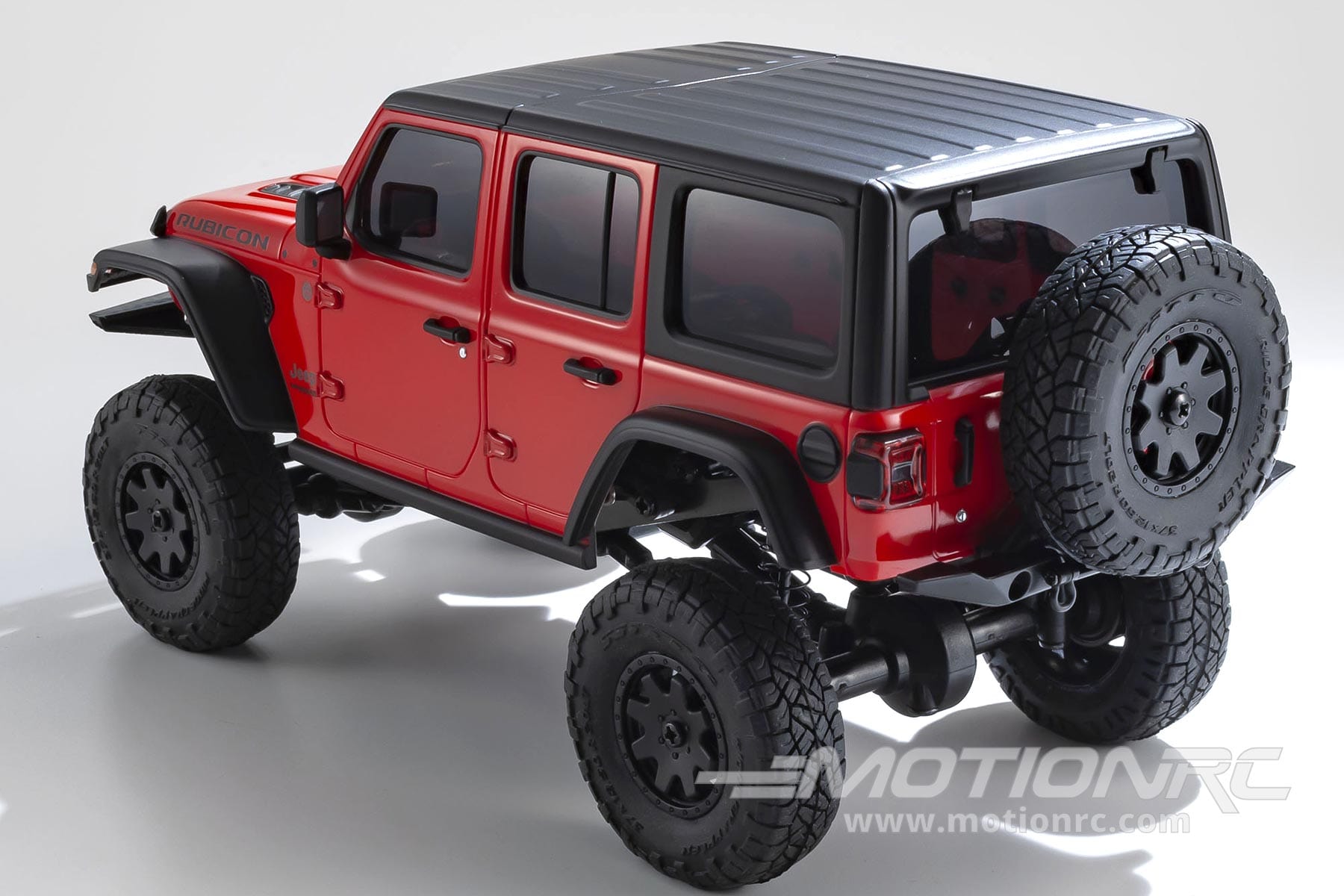

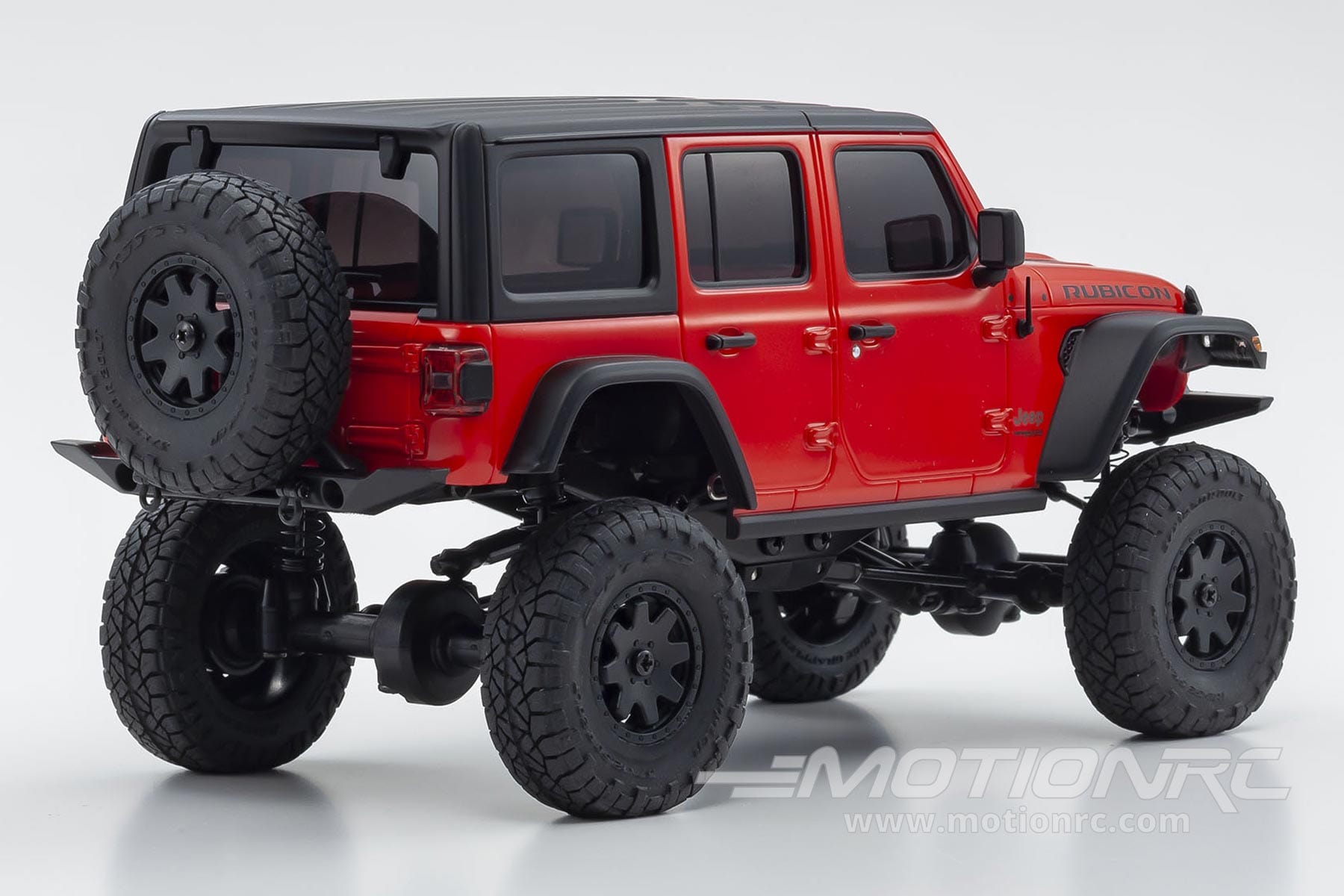

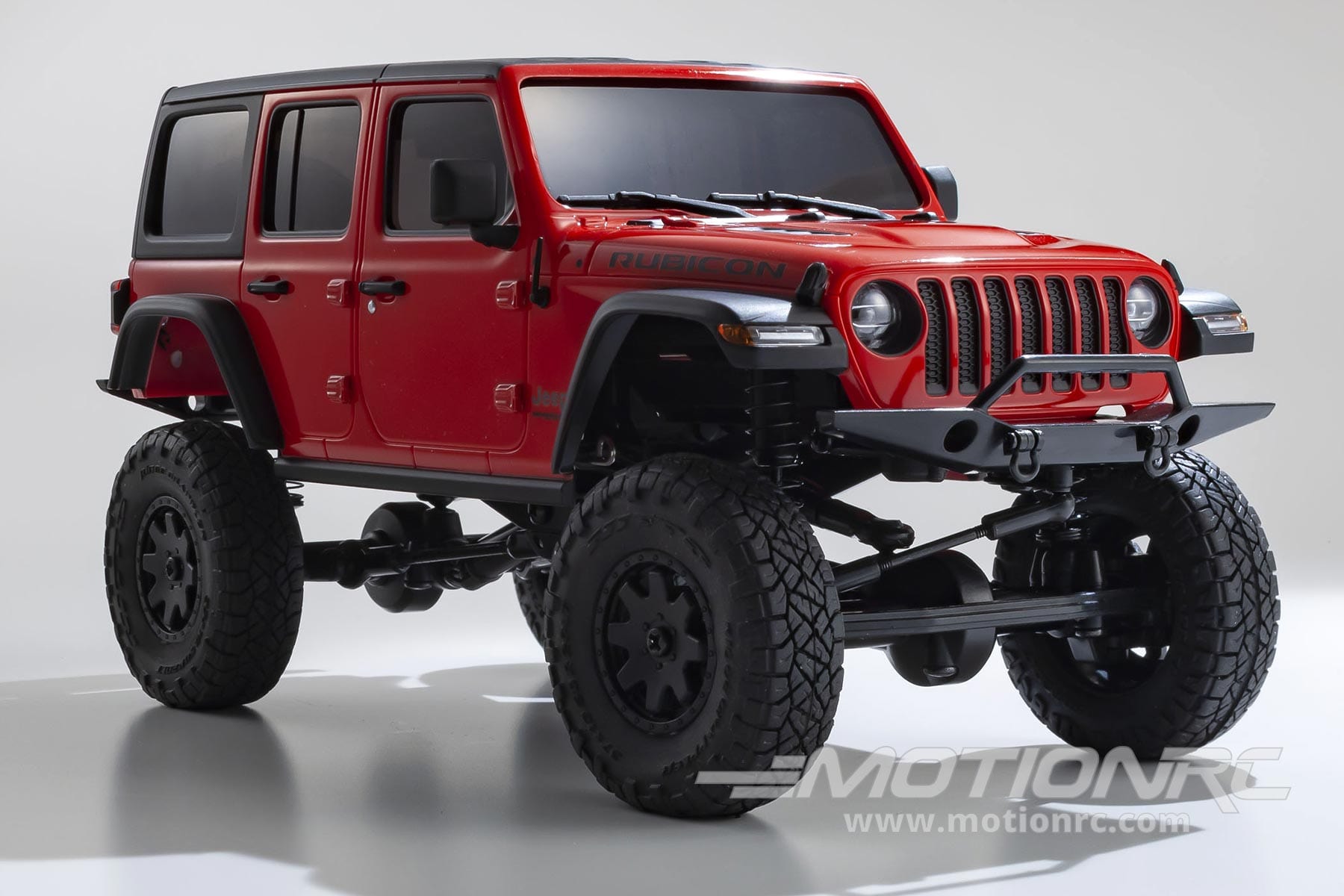

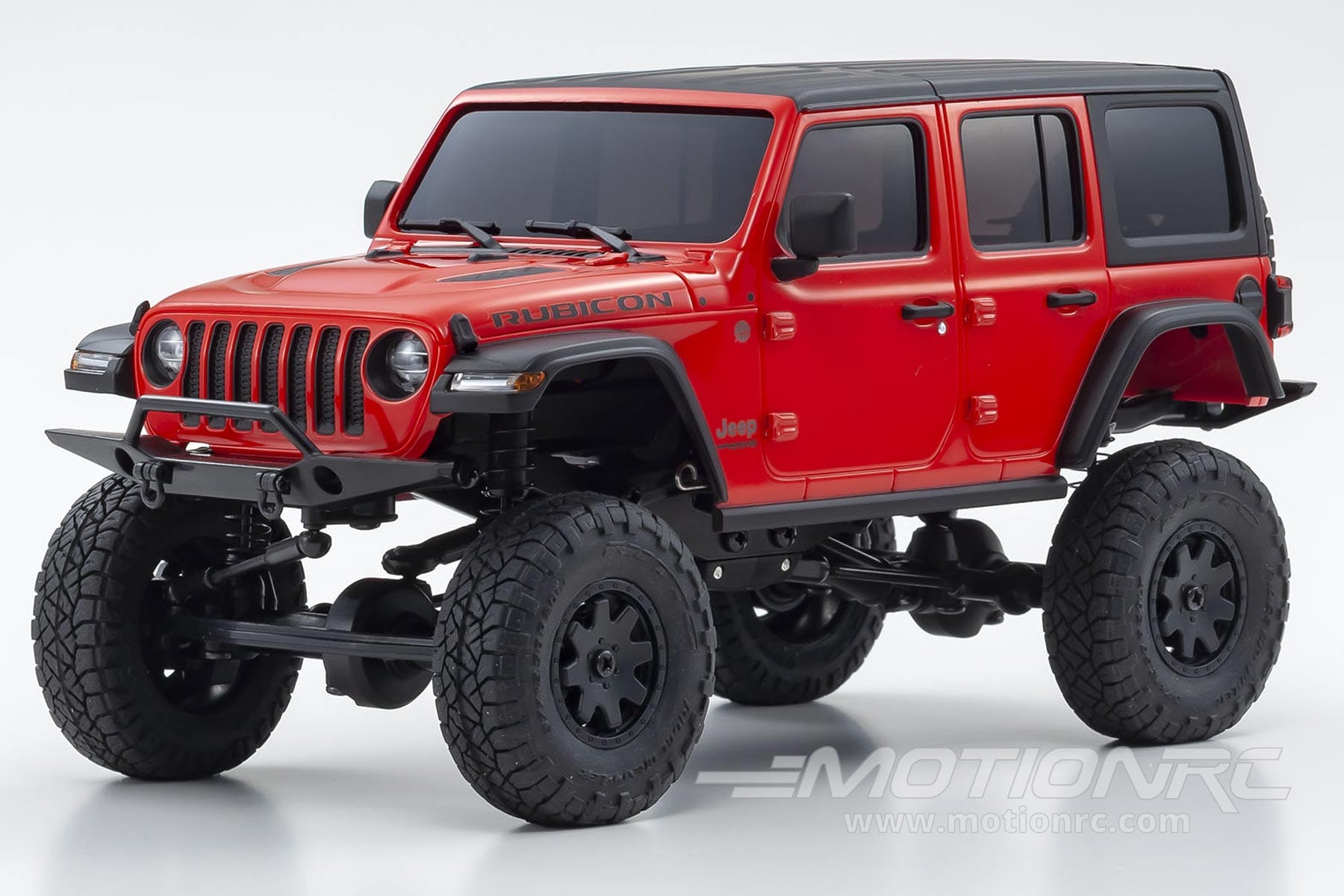

Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon Red 1/27 Scale 4WD Truck - RTR from Kyosho - KYO32521R
Version Info: This truck is delivered as "RTR", however does require 4x AAA batteries for the transmitter, and 4x AAA for the chassis purchased separately (see Requires below for details).
In the signature Jeep® Wrangler lineup, the Rubicon boasts the strongest off-road performance. With black over-fenders, front grille with dark grey accent, and the distinctive Jeep® round headlights, the formidable styling of the black hard top is immaculately reproduced in a model that rests on the palm of your hand.
A significant feature of the MINI-Z 4x4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement.
A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4x4, specially geared to run well in the low to medium speed ranges common in crawling.
Your Kyosho truck is backed by Motion RC's world-renowned customer service and technical support. Drive on!
Visit the Official Kyosho Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon 1/27 Scale 4WD Truck Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Ladder Frame Design The Mini-Z 4X4 uses a ladder frame design with steel vertical plates to deliver the ultimate balance of rigidity and flex for superior performance and durability. |
 |
Durable and Consistent Performance Solid front and rear axles feature steel tie rods and captured ends. Ring and pinion gear and other components feature metal construction for durability and consistent performance. |
 |
Protected Springs Coil over shocks feature a 360 degree spring retainer that cannot be lost on the trail and keep the springs where they need to be while operating at the limits of the suspension. |
 |
Chassis and Geometry Details The same ladder frame and multi-link rigid-axle suspension commonly used in popular 1:10-scale off-road models, is condensed into Mini-Z size for the most articulation and performance available in any mini RC truck. |
 |
Driveline The gearbox features molded covers and includes 6 pinion gears that allow adjustment from ultra-low gearing for steep terrain, through to high-speed gearing for smooth running on flat roads. In addition, the need for annoying backlash adjustments has been negated with the special spacer mounted on the outside of the motor. |
 |
130 Motor The Mini-Z 4x4 features a specially-designed high-torque motor that is unique in the Mini-Z World. It's optimized for maximum torque, and it develops more power at lower speeds. |
Features:
- Fully pre-painted body looks like a luxury diecast car replica
- The signature seven slot front grille of the Jeep® has been reproduced in immaculate detail, including back mesh netting
- Top® and the black overfender that wraps the trapezoidal wheel arch
- A newly-designed one-touch body mounting system is used instead of the mounts commonly used on all previous Mini-Z cars and trucks
- The KT-531P transmitter operates on FHSS 2.4GHz and features steering/throttle trim in addition to dual-rate adjustment of steering angle and LED control functions
Includes:
- Kyosho Mini-Z 4x4 Jeep Wrangler Unlimited Rubicon Red 1/27 Scale 4WD Truck
- Complete chassis with built in electronics
- Factory painted body complete with fine details
- KT531P 2.4GHz transmitter
- Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
- 3 pinion gear spacers
Requires:
- 8x AAA batteries for transmitter and chassis
Product Specifications:
Model Scale |
1/27 |
Length |
197.3mm / 7.7in |
Width |
87.3mm / 3.4in |
Height |
89.1mm / 3.5in |
Weight (No Battery) |
234g / 8.25oz |
Wheelbase |
120mm / 4.72in |
Ground Clearance |
N/A |
Body |
ABS Plastic |
Chassis |
MX-01 |
Drivetrain |
N/A |
Wheel Size (Diameter x Width) |
42mm x 14.3mm |
Wheel Hex Size |
N/A |
Tire Tread |
72.7mm |
Bushing Material |
N/A |
Suspension |
N/A |
Shock Type |
N/A |
Transmission |
N/A |
Gear Pitch |
N/A |
Internal Gear Ratio |
55.44:1 |
Final Drive Ratio |
N/A |
Pinion |
N/A |
Spur Gear |
N/A |
Differential |
N/A |
Ball Bearings |
N/A |
Brakes |
N/A |
Electronic Speed Control |
N/A |
Motor |
130 Class |
Battery |
8x AAA batteries (required) |
Max Battery Dimensions (L x W x H) |
N/A |
Servos |
N/A |
Radio |
Syncro KT-531P transmitter |
Lights |
Yes |
Sound |
No |
Water Resistant |
N/A |
Skill Level |
Intermediate |
Assembly Time |
1 Hour |
Recommended Environment |
Offroad |
