G58 Sport 1760mm (69.2") Wingspan - ARF from Nexa - NXA1016-001
Introduced in the 1969 and still produced today, the full-size G58 Sport is a luxurious 6 seat, turbo-charged civil airplane used by both private and commercial operators around the world.
The Nexa G58 Sport is a electric scale series civilian aircraft with a 1760mm wingspan, constructed primarily from balsa wood and fully covered. This ARF requires assembly and installation of your choice of servos and power system, and includes a two piece wing design with aluminum wing joiner, fiberglass cowling, painted pilot, struts, flaps, a large battery hatch and pre-hinged and installed control surfaces.
Please Note: Struts pictured are optional shock absorbing struts. More basic wire struts are included with the plane. The optional struts are located in our "upgrade" or "spare parts" tabs (coming soon).
Visit the Official Nexa G58 Sport 1760mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Fully Covered and Detailed The Nexa G58 Sport comes fully covered in an attractive white, red and black scheme with panel line and rivet detail. |
 |
Scale Details Throughout Satisfying scale details accentuate the G58 Sport including fiberglass cowling, painted pilot, and operational flaps. |
Features:
- Fully covered in an attractive white, red and black scheme with panel line and rivet detail
- Complete Balsa and lite-ply construction for rigidity and durability
- Wheels and struts are included
- Two piece wing with aluminum wing joiners for easy transport
- Functional flaps for shorter takeoffs and slower landings
- Fiberglass cowling, detailed cockpit and painted pilot for added scale appeal
- All control surfaces come out of the box pre-hinged and installed for convenience
- Large battery hatch allows easy access to your chosen electric setup
Includes:
- Nexa G58 Sport 1760mm (69.2") Wingspan - ARF
- Spinner, fiberglass cowling
- Motor mounts
- Wheels, wheel covers and struts
- Hardware and decals
Requires:
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 2x Brushless outrunner motors - we recommend the Admiral GP5 4220-770Kv Brushless Motor Multi-Pack (2 Motors)
- 2x 45 Amp brushless ESCs - we recommend the ZTW Mantis G2 45A ESC with 4A SBEC Multi-Pack (2 ESCs)
- 4x high torque micro servos for ailerons and flaps - we recommend Hitec HS-85BB High Torque Micro Servo Airplane Multi-Pack (4 Servos)
- 2x standard metal gear servos for elevator and rudder - we recommend Hitec HS-485HB Deluxe Ball Bearing Karbonite Gear Standard Servo Airplane Multi-Pack (2 Servos)
- Electric retracts for the landing gear - we recommend Nexa Electronic Retract Set with Struts - Type E
- 2x 4 Cell 14.8V 3000 - 4000 mAh LiPo batteries - we recommend the Admiral 3000mAh 4S 14.8V 35C LiPo Battery with XT60 Connector Multi-Pack (2 Batteries)
- 2z 11x7 Electric propellers - we recommend the APC 11x7 Thin Electric Propeller - Black Multi-Pack (2 Propellers)
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/6 |
Wingspan |
1760mm / 69.2in |
Length |
1210mm / 47.6in |
Weight |
4300g / 151.67oz |
CG (Center of Gravity) |
100-104mm from the leading edge of the wing's root |
Power System |
2x 770Kv Brushless Outrunner Motors (required) |
Electronic Speed Control |
2x 45A (required) |
Propeller / EDF |
2x 11x7 2-blade (required) |
Servos |
|
Landing Gear |
Wire struts included, electronic retractable gear optional |
Required Battery |
2x 4 Cell 14.8V 3000 - 4000 mAh LiPo Battery (required) |
Required Radio |
6+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
Spare Parts
Product Spare Parts

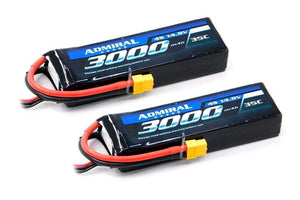

Admiral 3000mAh 4S 14.8V 35C LiPo Battery with XT60 Connector Multi-Pack (2 Batteries)
SKU: ADM6024-005
$7449
Hitec HS-485HB Deluxe Ball Bearing Karbonite Gear Standard Servo Airplane Multi-Pack (2 Servos)
SKU: HRC6005-015
$3499
Sold out
1 - 29 of 29 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
If you need any additional assistance, please visit the Motion RC Help Center
