Sbach 342 V3 2000mm (78.74") Wingspan from Black Horse - Balsa Wood ARF - BHSB000
Version Info: This is the V3 version of the Black Horse Sbach 342. All Sbach's sold after July 2022 are V3.
The XtremeAir Sbach 342 (XA42) is a German high performance two-seat aerobatic and touring monoplane. The Sbach 342 is a composite structure low-wing monoplane with a fixed conventional landing gear with a tailwheel and carbon fiber fuselage.
The Black Horse Sbach 342 V3 is lightweight yet durable with large, easy access hatches for your battery/fuel tank. With the recommended setup, the Sbach offers fantastic performance in an eye-catching livery sure to impress.
Visit the Official Black Horse Sbach 342 2000mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- High level of prefabrication right out of the box
- Lightweight, strong, and fully sheeted laser cut balsa and plywood construction
- Covered in high quality Oracover
- Recessed hinges on all control surfaces
- Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
- Fiberglass twinned control horns with ball link connector
- Pull-Pull control system on the rudder for precision control and authority
- comprehensive control and fitting accessories included
- Two-piece, plug-in wings simplify transportation and assembly.
- Fiberglass cowl and landing gear covers/pants
- Mounts for both electric and gas power options included
- Fully illustrated instruction manual included and also available for download (see tab above)
Includes:
- Black Horse Sbach 342 V3 2000mm (78.74") Wingspan - ARF
Requires (Electric):
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 2500+ Watt Brushless Outrunner Motor - we recommend the Admiral GP35 C6332-175Kv Brushless Motor
- 80+ Amp Brushless ESC - we recommend Castle Creations Phoenix Edge High Voltage 80A ESC
- 5x standard servos
- For 12S setup TWO 6 Cell 22.2V 3500 - 5000 mAh LiPo Batteries - we recommend Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
- 2 to 1 EC5 series adapter - we recommend Admiral EC5 2 to 1 Series Adapter
- 20 x 8E to 21 x 10E 2 blade electric propeller - we recommend APC 20x12 Thin Electric Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Requires (Gas):
- Engine: 30-35cc 2-stroke (NGH GT35 recommended). 38-42cc 4-stroke (NGH GF38 recommended)
- Gas Propeller: 18x10-20x8 (2 Stroke and 4 Stroke)
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/4 Scale |
Wingspan |
2000mm / 78.74in |
Length |
1890mm / 74.41in |
Weight |
5500-5700g / 12.1-12.54lbs |
CG (Center of Gravity) |
160-165mm from leading edge of wing root |
Power System |
2500 Watt+ Brushless Outrunner Motor or 30 - 35cc 2 or 38 - 42cc 4-stroke (required) |
Electronic Speed Control |
80+A (required) |
Propeller / EDF |
20 x 8E to 21 x 10E 2 blade (required) |
Servos |
|
Landing Gear |
Fixed |
Required Battery |
TWO 6 Cell 22.2V 3500 - 5000 mAh LiPo Batteries (required) |
Required Radio |
6 Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
No |
Lights |
Optional |
Hinge Type |
Fiberglass |
Material |
Balsa and plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
Videos
Product Videos
Spare Parts
Product Spare Parts
Admiral Pro 5000mAh 4S 14.8V 60C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
SKU: ADM6024-001
$14749

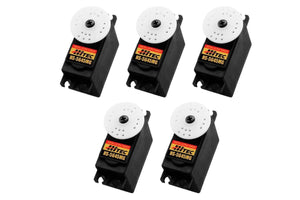

Hitec HS-5645MG Digital High Torque Ball Bearing Metal Gear Standard Servo Multi-Pack (5 Servos)
