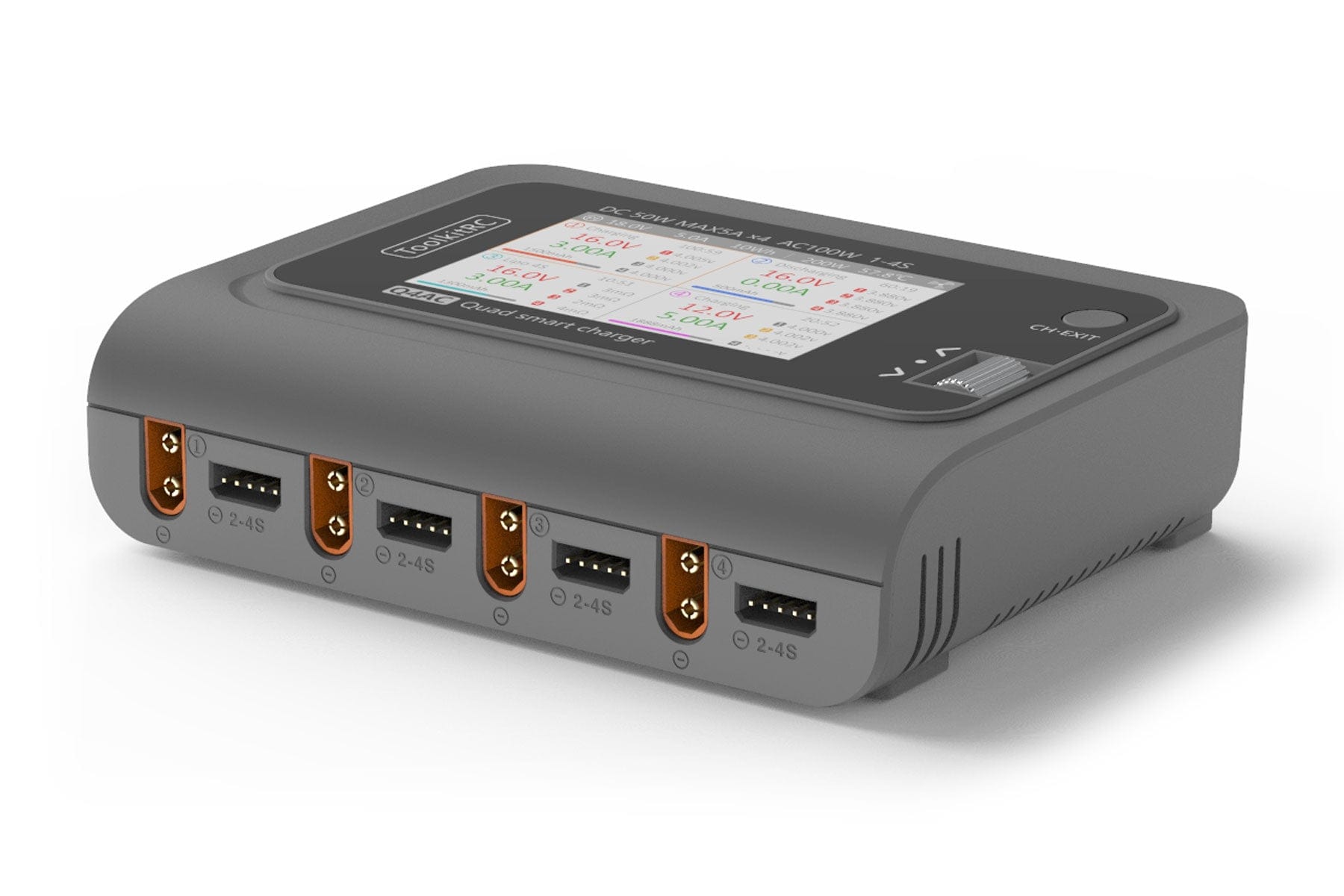

Q4AC 200W 4 Cell (4S) Quad Port LiPo AC/DC Battery Charger from ToolkitRC - TK12000
The ToolkitRC Q4AC is a powerful and versatile quad-channel charger that delivers exceptional convenience and performance for RC enthusiasts. Featuring four independent charging channels, the Q4AC supports a wide range of battery types, including LiPo, LiHV, LiFe, LiIon, NiMH, and Pb, and provides up to 50W of power per channel. Boasting a large 3.5" IPS display, precision balance accuracy under 0.005V, and a built-in 100W AC power supply or high-power 200W DC input, the Q4AC offers unparalleled flexibility, versatility, and reliability in a compact and portable design. With both XT60 and XT30 ports, 10 language options, and AC/DC input options, the Q4AC is the ultimate charging solution for RC hobbyists on the go.
Note: We recommend reading this Motion RC knowledge blog article about charger amperage and wattage ratings.
 |

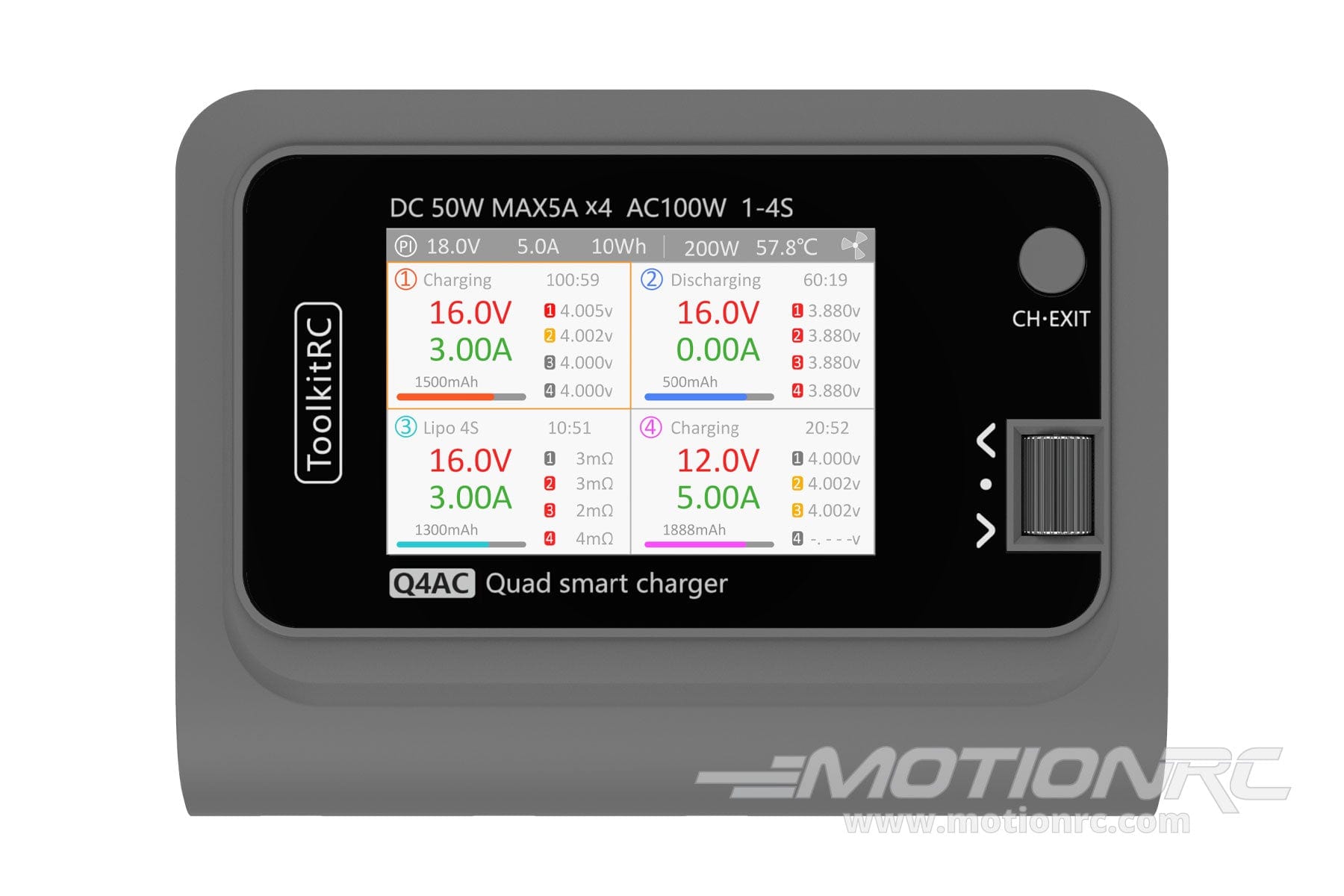

Vibrant Color Display and Graphical UI The bright, colorful, IPS display gives you all the info you need via an easy-to-use interface. |
 |
Quad Channel Output Charge four batteries simultaneously with up to 200W charging power. |
 |
AC/DC Dual Input With the internal 100W AC power supply and up to 200W DC via the XT60 input plug, you’ll never be short on power options. |
 |
Multiple Language Support Supports 10 language options for a wide range of users. |
Features:
- Quad-channel design for simultaneous charging of up to 4 batteries
- Supports 1-4S LiPo, LiHV, LiFe, Li-ion, 1-10S NiMH, and 1-8S Pb batteries
- Provides 0.1-5A of charge current per channel, up to 50W per channel
- Offers 0.1-2A discharge capability per channel, up to 5W per channel
- Maintains exceptional balance accuracy of less than 0.005V
- Features a large, bright 3.5" IPS display for easy monitoring and control
- Powered by a built-in 100W AC power supply or high-power 200W DC input
- XT60 output for ease of use with most batteries
- Compact and portable design
Includes:
- ToolkitRC Q4AC 200W 4 Cell (4S) Quad Port LiPo AC/DC Battery Charger
- AC power cord
- User Manual
Never, under ANY circumstances, leave your charger unattended while charging a LiPo battery. Keep the charger away from moisture, dust, direct sunlight, or any heat sources. The charger should always be placed on a heat-resistant, non-flammable surface during charging. Never overcharge or exceed a 1C charge current. A 1C charge current means the charge current equals the capacity of the battery. For example, a 2200mAh battery should never be charged using a current greater than 2.2 Amps (2200mAh).

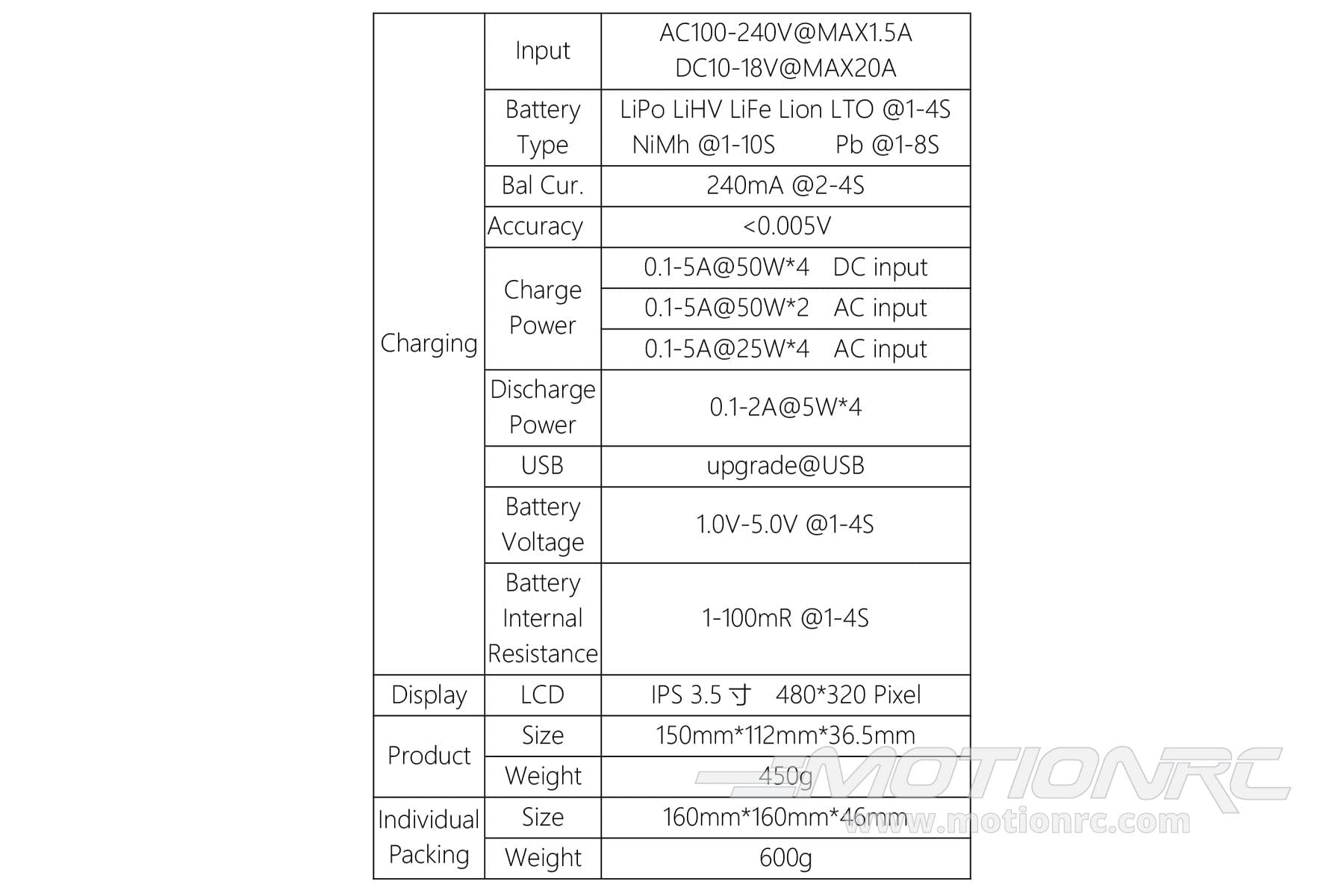

Product Specifications:
| AC Input | 100-240V |
| DC Input | 10-18V |
| Charge Circuit Power (AC Input) | 100W |
| Charge Circuit Power (DC Input) | 200W |
| Charge Current Range | 0.1-5A |
| Max Charge Current | 5A |
| Discharge Current Range | 0.1-2A |
| Discharge Power | 5W @0.1-2A |
| LiPo/LiHV Cells | 1-4S |
| NiMH/NiCd Cells | 1-10S |
| Pb(Lead Acid) Battery Voltage | 1-8S |
| Dimensions (L x W x H) | 150 x 112 x 36.5mm (5.90 x 4.40 x 1.43 in) |
| Weight | 450g (0.99 lbs) |
Spare Parts
Product Spare Parts

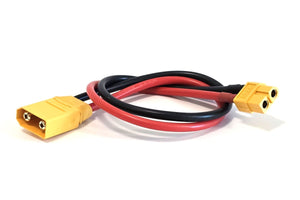

BenchCraft 300mm (12") Charge Lead Extension with X60 Male to XT60 Female Connector
SKU: BCT5002-026
$299
Sold out
1 - 11 of 11 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
If you need any additional assistance, please visit the Motion RC Help Center
