M9 600W 8 Cell (8S) LiPo DC Multifunction Battery Charger from ToolkitRC - TK11900
The ToolkitRC M9 is a feature-rich, high-performance balance charger designed to meet the demands of hobbyists, RC enthusiasts, and professionals. Capable of handling batteries across a variety of chemistry types including LiPo, LiHV, LiFe, LiIon, and NiMH, the M9 delivers an impressive 600W of maximum charging power. Its vibrant 2.4" IPS color display provides easy-to-read information, with customizable voice prompts and a multi-angle viewing design for convenient operation. Beyond just charging, the M9 also functions as a servo tester, watt meter, data logger, and more, consolidating multiple tools into a single compact device to declutter your workspace. With dual USB fast charging ports, the M9 can even keep your mobile devices powered up. Whether you need to charge your RC batteries or power your project, the versatile ToolkitRC M9 has you covered.
Note: We recommend reading this Motion RC knowledge blog article about charger amperage and wattage ratings.
 |

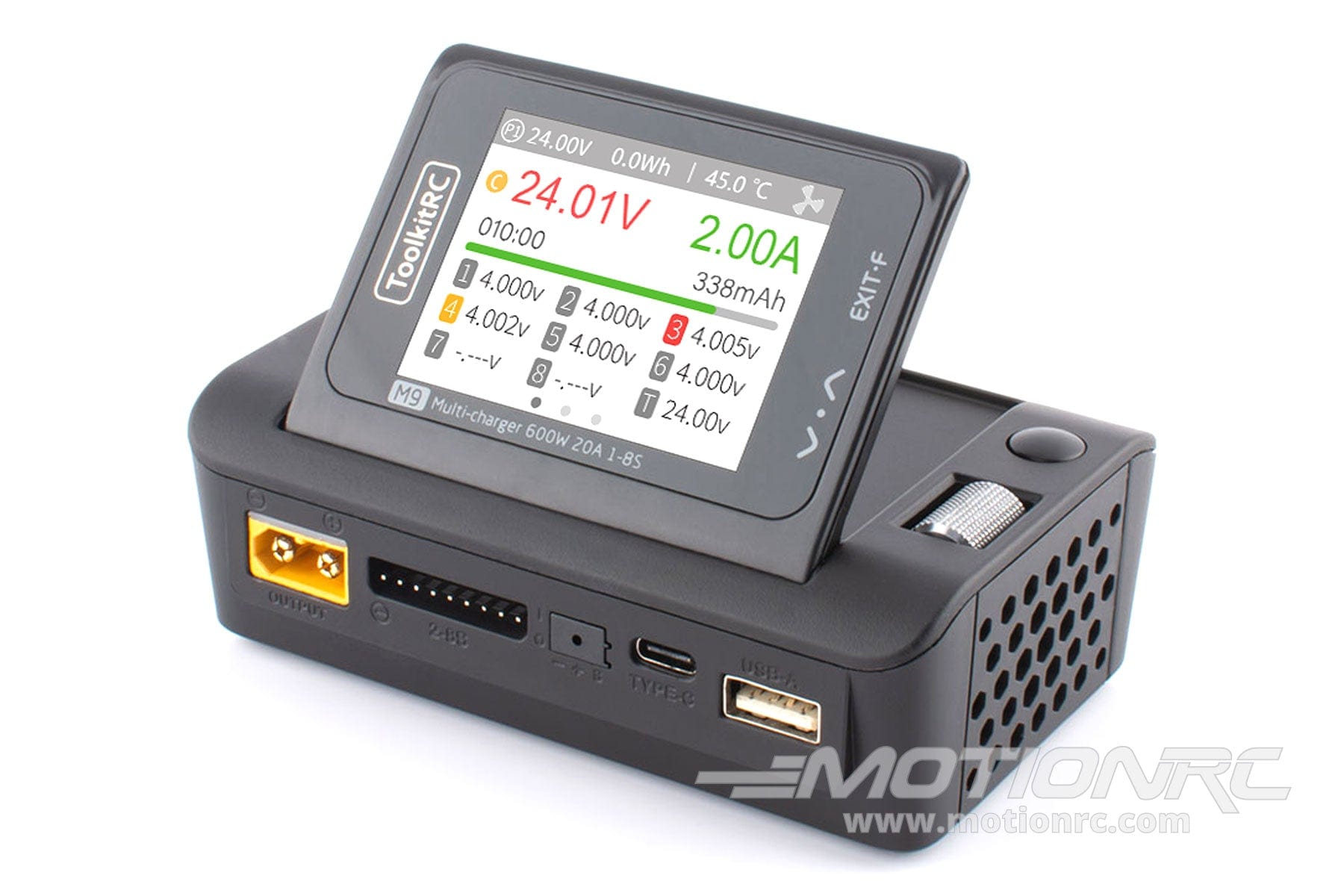

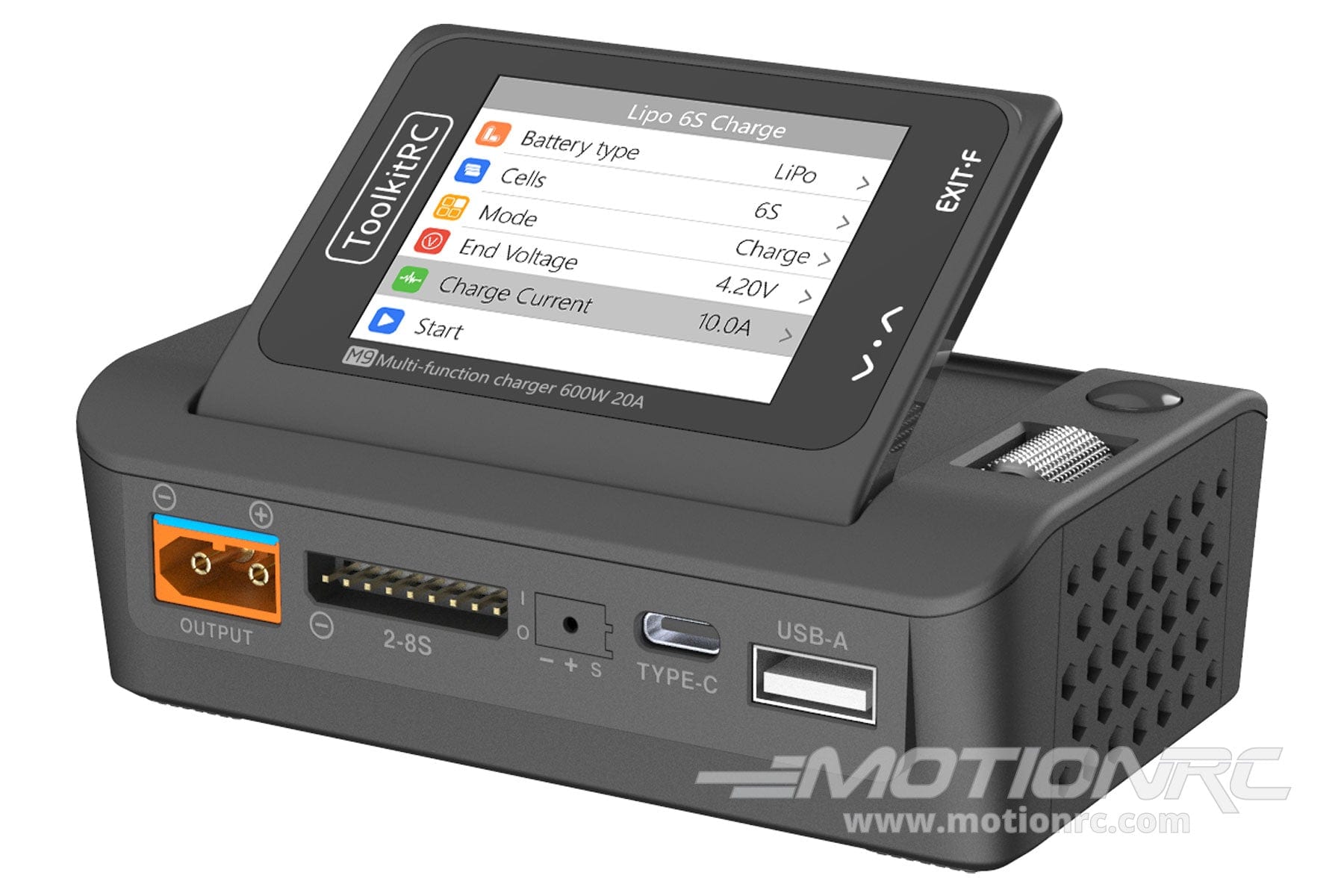

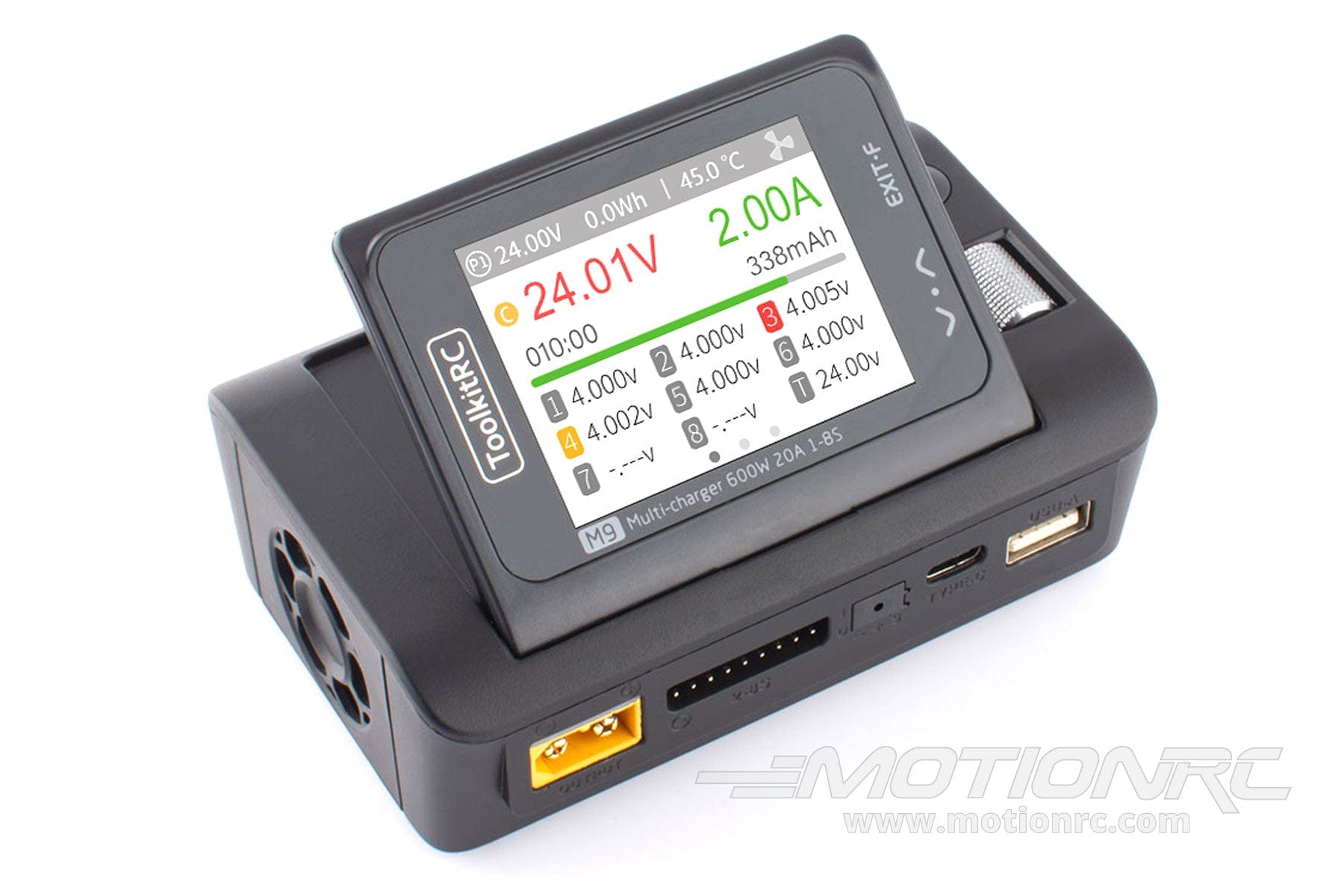

Vibrant Color Display and Graphical UI The bright, colorful, IPS display gives you all the info you need via an easy-to-use interface. |
 |
Custom Voice Alerts And Welcome Screen Images Assign voice alerts and choose your favorite images for your welcome screen. |
 |
More Than Just A Charger Not only will the M9 handle all of your charging needs with ease, it also boasts a whole host of additional features such as servo testing, watt meter functionality, DC power output and more! |
 |
High Power Output Up to 600W of charging power for your battery packs plus up to 65W via USB-C for topping up your mobile devices with ease. |
Features:
- Supports 1-8S LiPo, LiHV, LiFe, LiIon, LTO, 1-20S NiMH, and 1-12S Pb
- Delivers up to 600W of maximum charging power at 20A
- Includes dual USB fast charging ports (65W max)
- Features a vibrant 2.4" IPS color display
- Offers customizable voice prompts and welcome screen

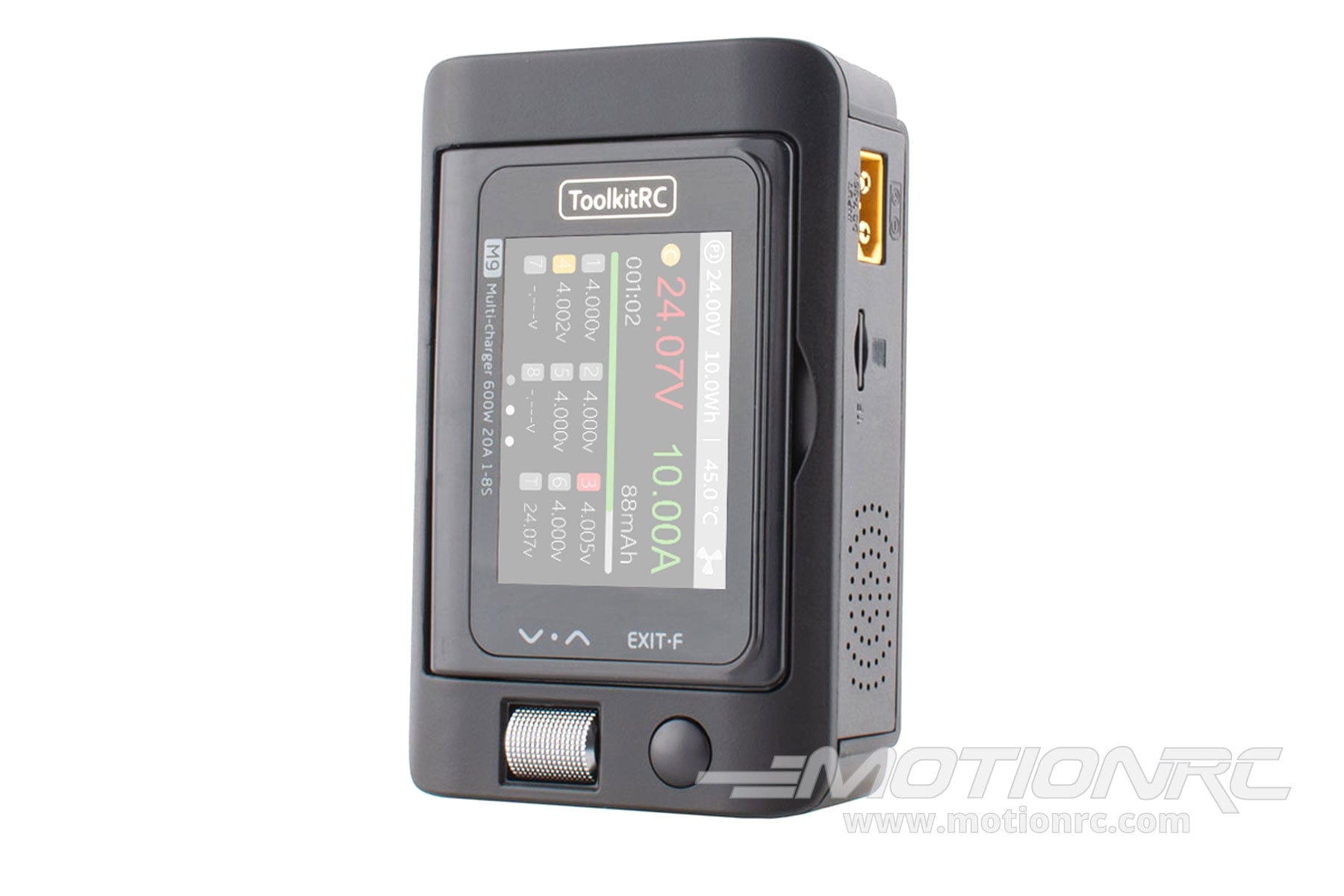

- Enables multi-angle display positioning for easy viewing
- Functions as a servo tester, watt meter, data logger, and more
- Compact and portable design to declutter your workspace
- Measures PWM, PPM, SBUS, voltage, and internal resistance
- Provides 500-2500μs PWM and 880-2200μs PPM/SBUS output
- XT60 output for ease of use with most batteries
- Firmware upgradable via USB for future enhancements
Includes:
- ToolkitRC M9 600W 8 Cell (8S) LiPo DC Multifunction Battery Charger
- USB cable
- User Manual
Requires:
- External power supply/power source
Never, under ANY circumstances, leave your charger unattended while charging a LiPo battery. Keep the charger away from moisture, dust, direct sunlight, or any heat sources. The charger should always be placed on a heat-resistant, non-flammable surface during charging. Never overcharge or exceed a 1C charge current. A 1C charge current means the charge current equals the capacity of the battery. For example, a 2200mAh battery should never be charged using a current greater than 2.2 Amps (2200mAh).
Product Specifications:
| AC Input | N/A |
| DC Input | 7-35V |
| Charge Circuit Power (AC Input) | N/A |
| Charge Circuit Power (DC Input) | 600W |
| Charge Current Range | 0.1-10A |
| Max Charge Current | 10A |
| Discharge Current Range | 0.1-20A |
| Discharge Power |
|
| LiPo/LiHV Cells | 1-8S |
| NiMH/NiCd Cells | 1-20S |
| Pb(Lead Acid) Battery Voltage | 1-12S |
| Dimensions (L x W x H) | 108 x 71 x 36mm (4.25 x 2.79 x 1.41 in) |
| Weight | 235g (0.52 lbs) |
