M8D 1600W 8 Cell (8S) Dual Port LiPo DC Battery Charger from ToolkitRC - TK13000
The ToolkitRC M8D is an advanced 1600W dual-output battery charger that offers unparalleled flexibility and performance for RC enthusiasts. With its dual channels, the M8D allows you to charge two batteries simultaneously, saving you time and enhancing your productivity. Compatible with various battery types—including LiPo, LiFe, NiMH, and more—the M8D ensures precise and safe charging with its high-efficiency charging algorithm and comprehensive safety features. The charger’s intuitive, full-color touchscreen interface provides easy access to all settings and real-time monitoring, while its robust build and advanced protections, such as overcharge and temperature monitoring, ensure reliable performance. Compact and versatile, the ToolkitRC M8D is the ultimate tool for maintaining peak performance of your RC gear.
Note: We recommend reading this Motion RC knowledge blog article about charger amperage and wattage ratings.
 |

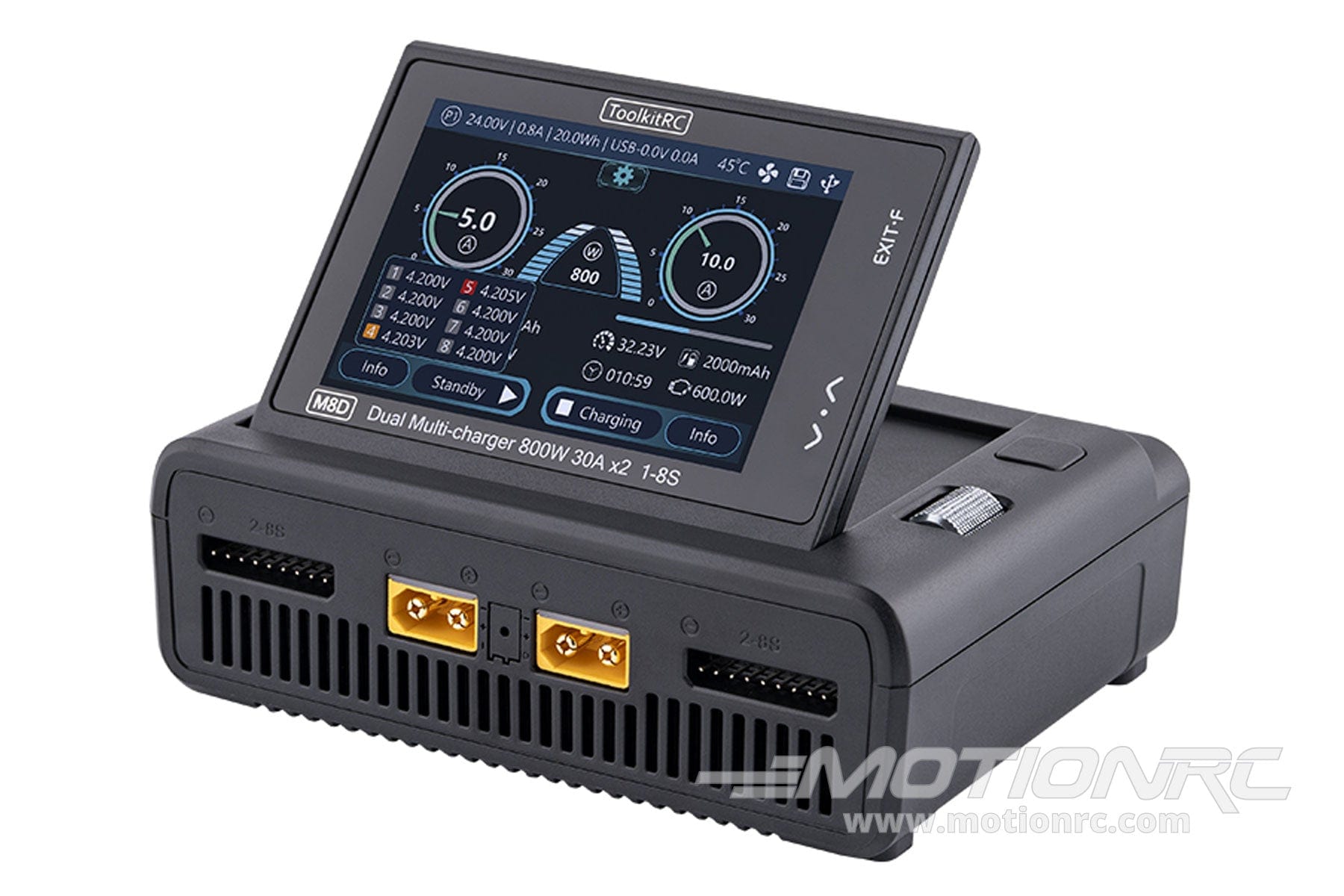

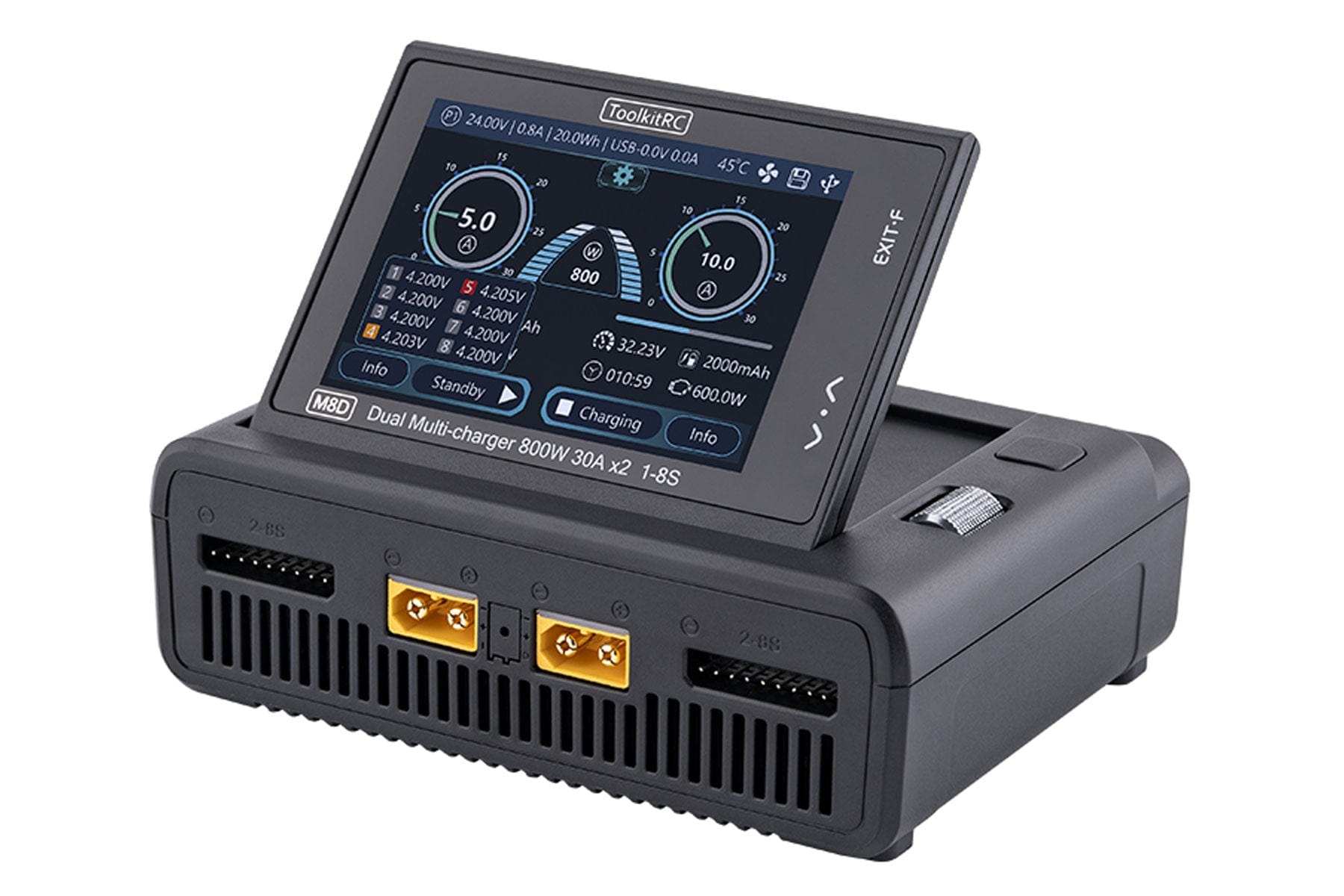

Vibrant Color Display and Graphical UI The bright, colorful, IPS display gives you all the info you need at your fingertips. |
 |
Graphical UI Full access to charge settings and data via an easy-to-use interface. |
 |
Adjustable Display Screen Angle-adjustable touchscreen display with 80 degrees of articulation. |
 |
Dual Channel Output Charge two batteries simultaneously with up to 1600W charging power. |
 |
USB-C Fast Charging Support for up to 65W fast charging via USB-C to power all your portable devices. |
 |

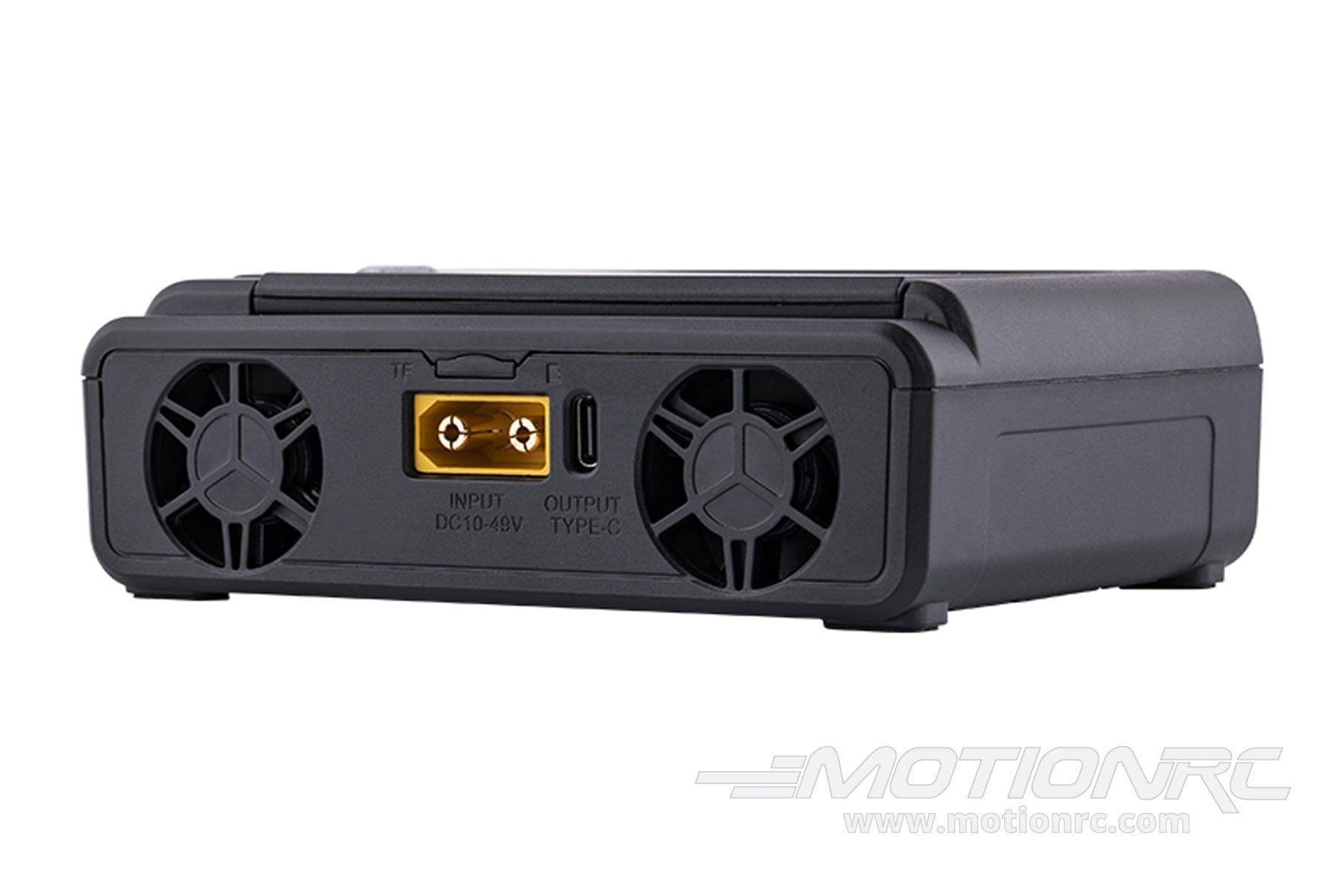

Dual Fans Efficient cooling and low noise from the automatically controlled cooling system. |
Features:
- Dual output channels: Charge two batteries simultaneously, improving efficiency and saving time
- Wide battery compatibility: Supports various battery types, including LiPo, LiFe, LiHV, NiMH, and Pb
- High-efficiency charging algorithm: Ensures fast, reliable, and precise charging
- Intuitive full-color touchscreen: User-friendly interface with clear navigation and real-time monitoring
- Advanced safety features: Includes overcharge protection, temperature monitoring, and short circuit protection
- Robust build: Durable construction designed to withstand frequent use in various conditions
- Compact design: Portable and space-efficient, ideal for both workshop and on-the-go use
- XT60 output for ease of use with most batteries
- Versatile connectivity: Multiple input options to accommodate different setups and battery types

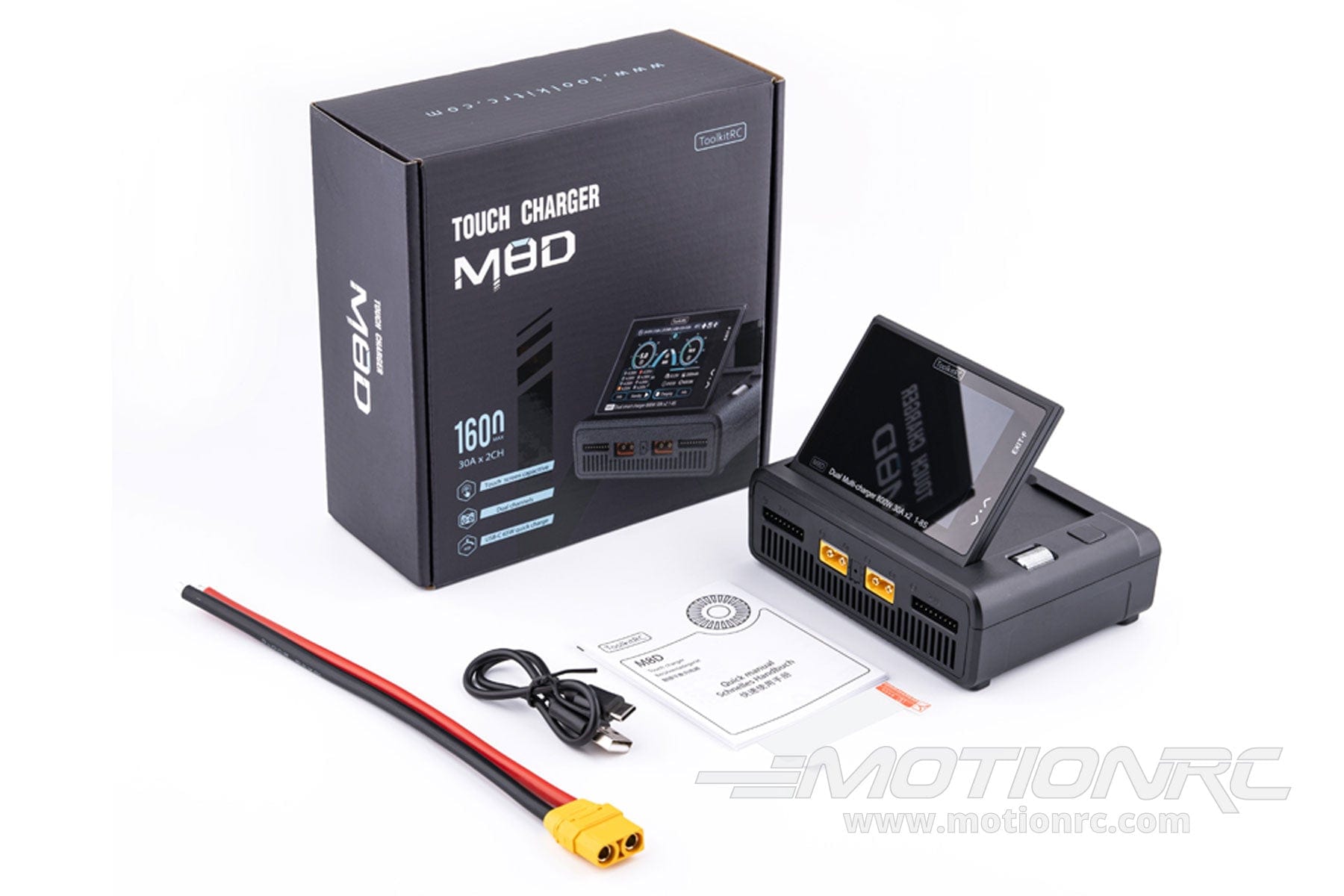

Includes:
- ToolkitRC M8D 1600W 8 Cell (8S) Dual Port LiPo DC Battery Charger
- XT90 DC input cable
- USB cable
- Screen protector
- User Manual
Requires:
- External power supply/power source
Never, under ANY circumstances, leave your charger unattended while charging a LiPo battery. Keep the charger away from moisture, dust, direct sunlight, or any heat sources. The charger should always be placed on a heat-resistant, non-flammable surface during charging. Never overcharge or exceed a 1C charge current. A 1C charge current means the charge current equals the capacity of the battery. For example, a 2200mAh battery should never be charged using a current greater than 2.2 Amps (2200mAh).
Product Specifications:
| AC Input | N/A |
| DC Input | 10-49V |
| Charge Circuit Power (AC Input) | N/A |
| Charge Circuit Power (DC Input) | 1600W |
| Charge Current Range | 0.1-50A |
| Max Charge Current | 50A |
| Discharge Current Range | 0.1-30A |
| Discharge Power |
|
| LiPo/LiHV Cells | 1-8S |
| NiMH/NiCd Cells | 1-20S |
| Pb(Lead Acid) Battery Voltage | 1-15S |
| Dimensions (L x W x H) | 130 x 97 x 42mm (5.11 x 3.81 x 1.65 in) |
| Weight | 450g (0.99 lbs) |
