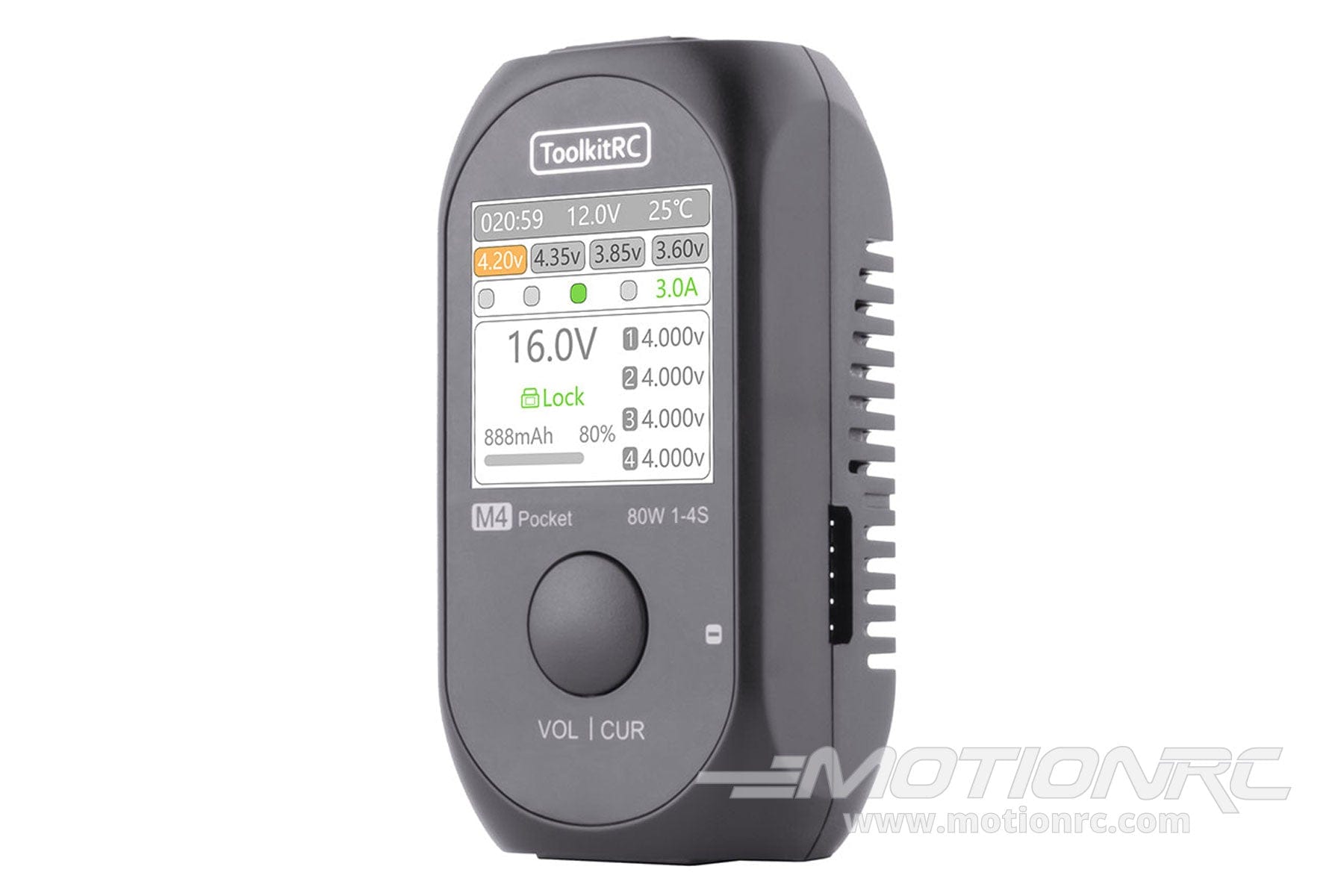

M4 Pocket 80W 4 Cell (4S) LiPo DC Battery Charger from ToolkitRC - TK11800
The M4 Pocket is the ultimate portable charging solution for RC hobbyists. Packing 80 watts of charging power in a compact, palm-sized design, this charger has the juice to handle all your RC battery needs. With both XT60 and USB-C input ports, the M4 Pocket can be easily powered and quickly charge your 1-4S LiPo, LiHv, and LiFe batteries at up to 5A. The built-in XT30 and XT60 output ports make it easy to charge your RC packs directly, without any bulky adapters. While the USB-C port is primarily for high-power input from PD power supplies (like those used for laptops), it can also provide a 5V 1A output to keep your mobile devices powered up between sessions. Featuring a large, clear IPS color display, the M4 Pocket puts all the critical charging information right at your fingertips. Whether you're at the field or in the workshop, this portable powerhouse is an indispensable tool for the RC enthusiast.
Note: We recommend reading this Motion RC knowledge blog article about charger amperage and wattage ratings.
 |
Vibrant Color Display and Graphical UI The bright, colorful, IPS display gives you all the info you need via an easy-to-use interface. |
 |
Small Size, Big Power The M4 may be small enough to fit in your pocket, but don’t let that fool you. With up to 80W of charging power, you’ll be done charging in no time! |
 |
Dual Inputs With both XT60 and USB-C input ports, the M4 Pocket can be easily powered by a variety of DC power sources. |
 |
XT30/XT60 Output Ports Built-in XT30/XT60 output ports make it easy to directly connect your batteries without a separate charge lead required. |
Features:
- 80W max power output
- Compact, palm-sized design (80x40x30mm)
- Lightweight at only 75g
- Dual input ports: XT60 input (DC 7.0-25.0V, max 5.0A), USB-C input (DC 7.0-20.0V, supports PD/QC/AFC/FCP fast charging protocols)
- Built-in XT30 and XT60 output ports
- Charges 1-4S LiPo, LiHv, and LiFe batteries
- Charge current up to 5.0A
- Balance charging up to 4.20V with <0.005V accuracy
- USB-C output (5V 1A) for charging mobile devices
- Large 1.54" IPS color LCD display
- Integrated overcharge, overload, short-circuit protection
Includes:
- ToolkitRC M4 Pocket 80W 4 Cell (4S) LiPo DC Battery Charger
- User Manual
Requires:
- External power supply/power source
Never, under ANY circumstances, leave your charger unattended while charging a LiPo battery. Keep the charger away from moisture, dust, direct sunlight, or any heat sources. The charger should always be placed on a heat-resistant, non-flammable surface during charging. Never overcharge or exceed a 1C charge current. A 1C charge current means the charge current equals the capacity of the battery. For example, a 2200mAh battery should never be charged using a current greater than 2.2 Amps (2200mAh).

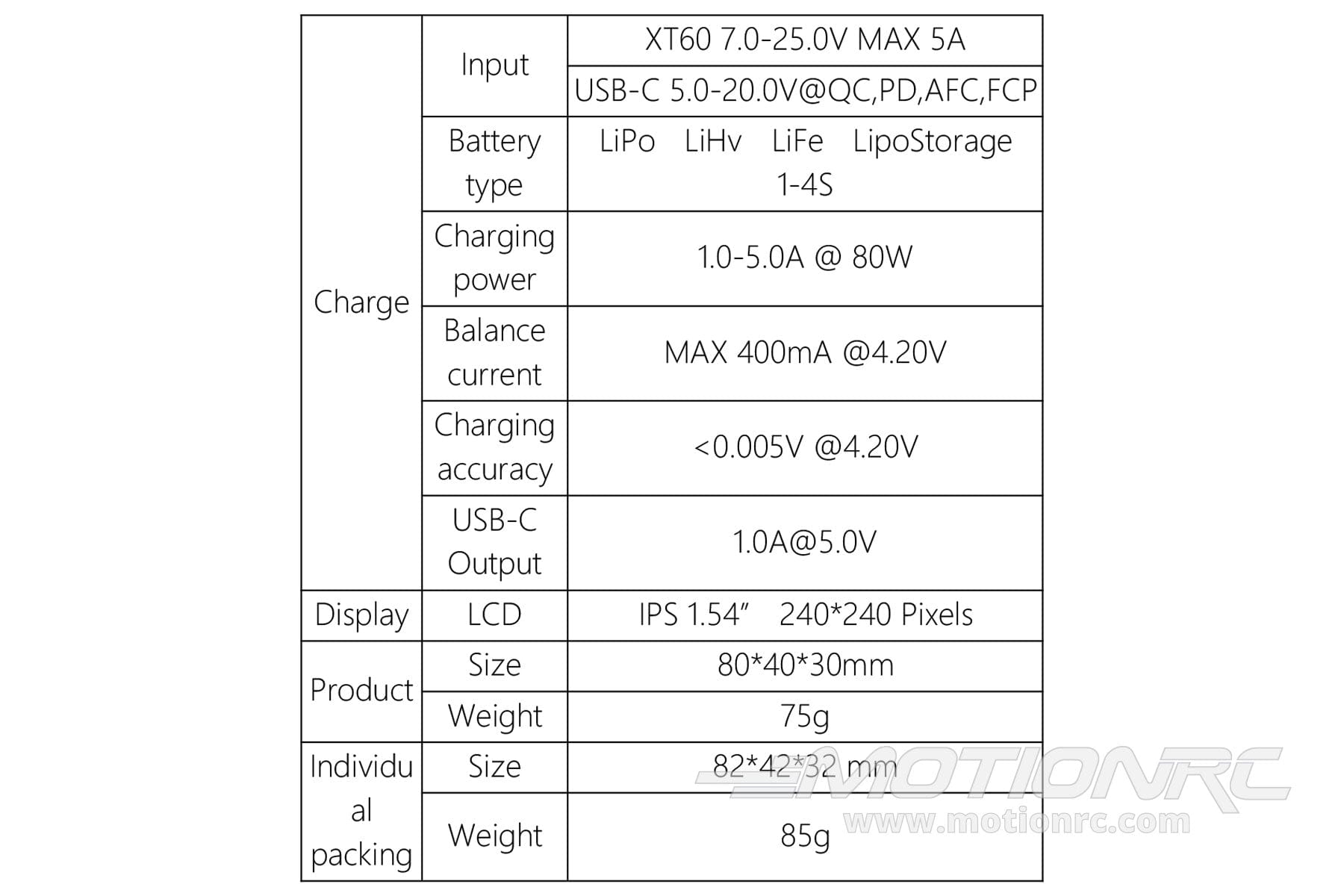

Product Specifications:
| AC Input | N/A |
| DC Input |
|
| Charge Circuit Power (AC Input) | N/A |
| Charge Circuit Power (DC Input) | 80W |
| Charge Current Range | 1-5A |
| Max Charge Current | 5A |
| Discharge Current Range | N/A |
| Discharge Power | N/A |
| LiPo/LiHV Cells | 1-4S |
| NiMH/NiCd Cells | N/A |
| Pb(Lead Acid) Battery Voltage | N/A |
| Dimensions (L x W x H) | 80 x 40 x 30mm (3.15 x 1.57 x 1.18 in) |
| Weight | 75g (0.16 lbs) |
